005563 (IV) Bradbury H4403ATL SL 4.0 Tonne Class IV ATL Electro-Hydraulic Lift (Standard Length)

Home » Garage Equipment » Class 4 MOT / ATL Equipment » 005563 (IV) Bradbury H4403ATL SL 4.0 Tonne Class IV ATL Electro-Hydraulic Lift (Standard Length)

Other Images - click on image to view

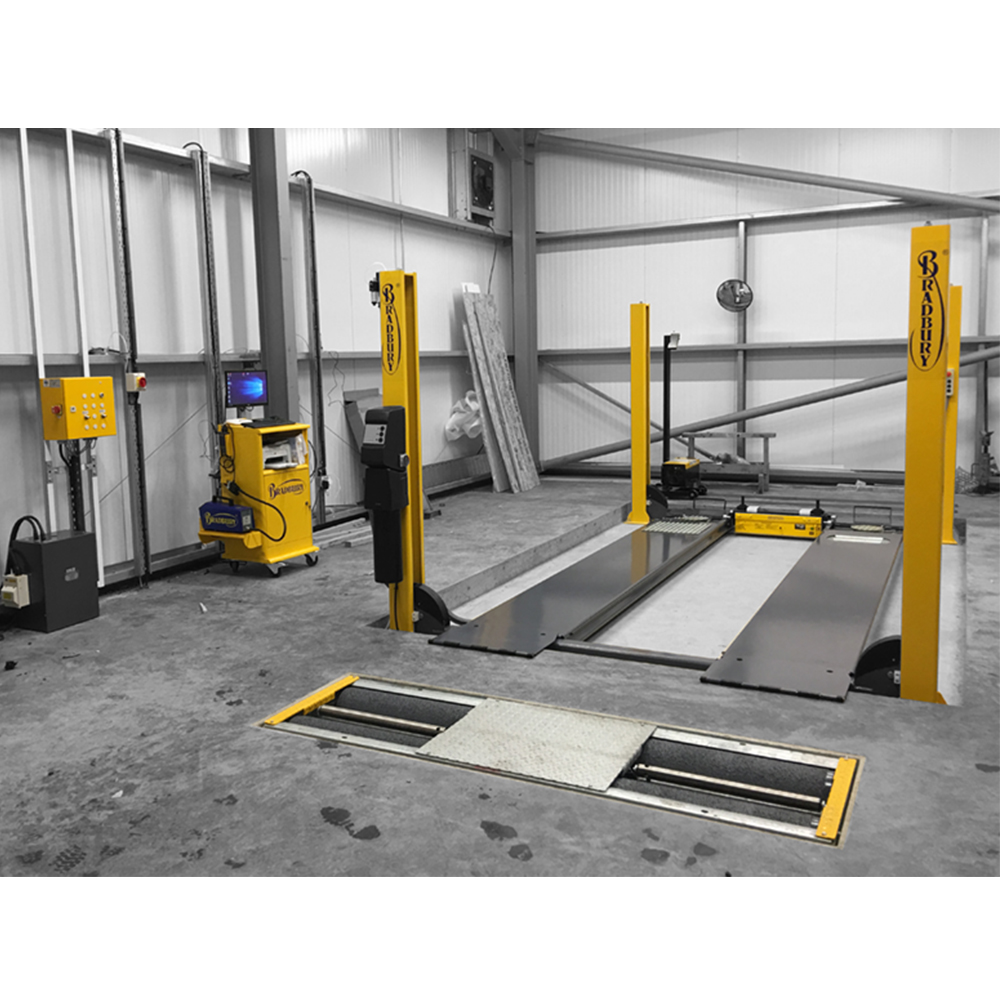

The Bradbury H4403ATL SL Approved 4 Post ATL Lift is suitable for one man MOT testing of class IV vehicles. This is the bigger version of the SR model with a wider drive through width and wider platforms. As standard, the lift features a powerful pneumatically operated play detector which is operated with a robust wireless handset and heavy duty turntables recessed into the platforms.

Key Features

· Safe & Reliable Hydraulic Operation

· Complete with recessed radius plates and air operated play detector

· Low profile platform

· Anti tilt system

· Emergency stop button

· Automatic parking system

· Eccentric brake system

· DVSA Approved for IV Testing

· Magnetic wireless handset standard

· 3 tonne lateral and rotational play detector standard

**Please note that the colour may vary from that shown in the picture, new colours for 2021 are Grey RAL7016 with yellow Bradbury Decals**

View some installations of this lift
H4403ATLSL Technical Specifications
Lifting capacity 4000kg
Lifting/ lowering time 24 – 26 seconds
Platform length 4360mm
Overall length 4540mm
Overall width 3030mm
Drive through width 2600mm
Each platform width 630mm
Distance between platforms 855mm
Minimum/maximum lifting height 140/1810mm
Electrical Supply – 3 Phase Motor 380 – 415V, 3kW
Operation Electro-Hydraulic
Air Supply 8 Bar
Jacking Beams
GEMLIGHT320
Download Brochure
Download Drawing

This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.

Warranty exclusions :
Accident damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only

Proof of maintenance will be required in the event of a warranty claim.

We offer a wide range of service contracts for this lift, please contact 0844 249 8101 for more information.

To download the HSE document for thorough examinations and testing of lifts follow the link below.
HSE Document
