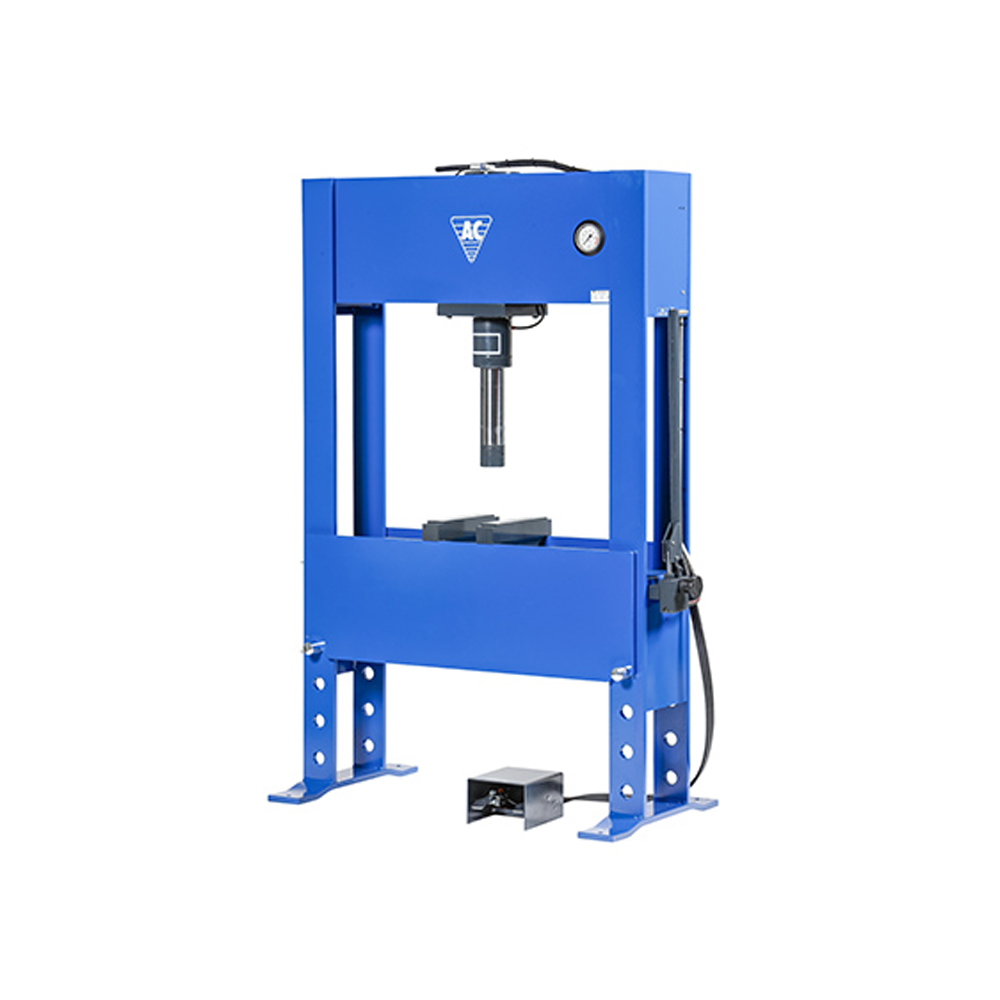

AC Hydraulic P100H – 100 Tonne Hand-hydraulic press

Home » Garage Equipment » Tools » Hydraulic Presses » AC Hydraulic P100H – 100 Tonne Hand-hydraulic press

AC Hydraulic P100H Hand hydraulic press for truck workshops and heavy industry

  • Foot-operated double-acting pneumatically controlled high speed leaving both hands free for quick and precise positioning of item
  • Traversing ram
  • With 300 mm stroke for dealing with demanding jobs
  • Built-in pressure gauge at convenient eye level
  • Wide, welded frame and press table ensuring high flexibility
  • Ram-operated adjustment of table
  • Built-in safety overload valve
  • Removable ram end cap for mounting of various piston heads
  • Supplied with 2 vee blocks
P100H Specification
Lifting capacity 100 tonne
Stroke 300 mm
Height 2040 mm
Width 1600 mm
Width between legs 1100 mm
Depth between legs 325 mm
Clearance 75 – 675 mm
Weight 1200 kg
Part Number Description
PS 70 010 00

  • Press plate with set of piston heads (Ø 10, 12, 15, 17, 20, 22, 25, 30 mm, adaptor and rack)
Protection screens Protection screens or optimum safety

  • Designed for maximum operator safety and fits all our presses
  • Steel mesh with shatterproof plexi glass
  • Protection screen with extreme high breakage point
  • Fitted with two handles and gas springs for infinitely variable positioning
  • Can be adjusted according to required working height
  • In conformity with the CE regulation according to Machine Directive 2006/42/EC
  • Different screens for all our presses
