AUTOPSTENHOJ Four Post MOT (Two Man) Lifts for Class IV & VII Vehicles

Home » Garage Equipment » Class 4, 5L & 7 MOT / ATL Equipment » AUTOPSTENHOJ Four Post MOT (Two Man) Lifts for Class IV & VII Vehicles

Other Images - click on image to view

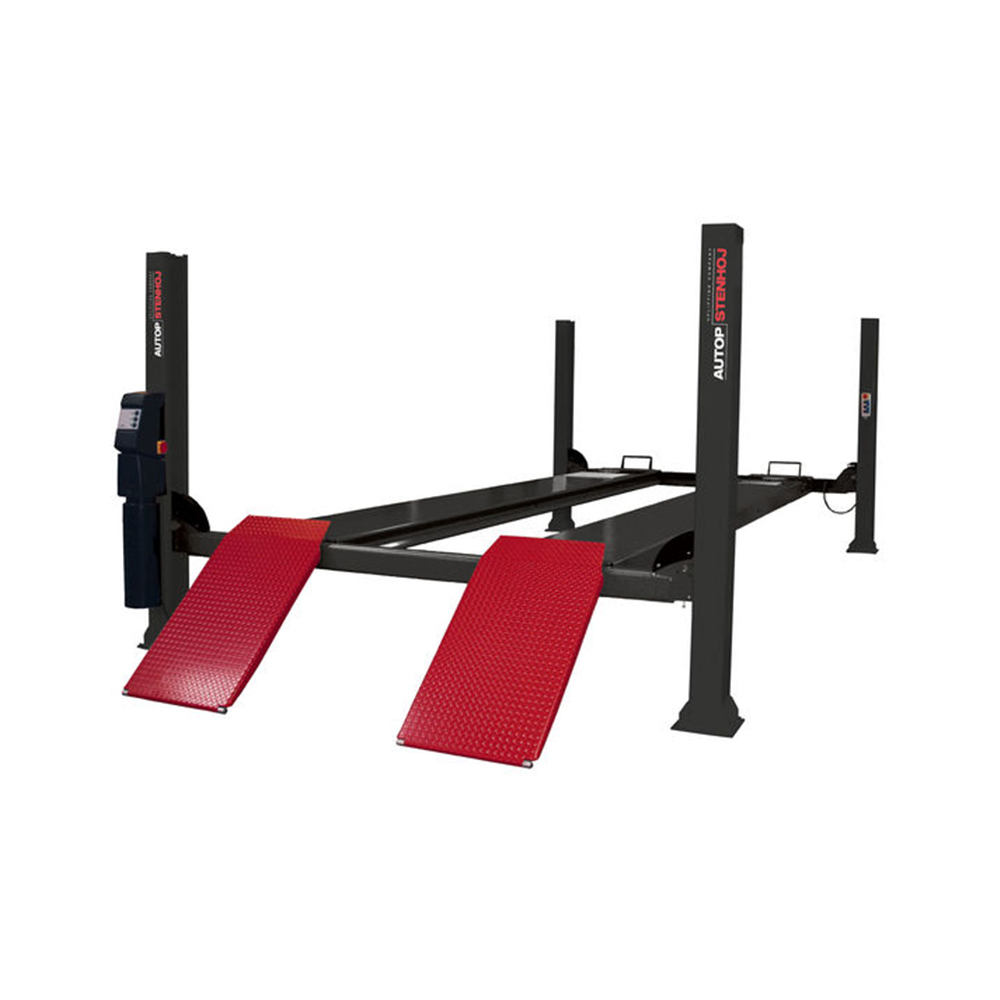

The AUTOPSTENHOJ Major MOT Series of class 4 & 7 MOT lifts compromises of three different models-two class 4 and one class 7. As with all other Major Lifts, these lifts are electro-hydraulically operated and are fitted with an eccentric brake and an obstruction system with alarm. As standard the lifts are fitted with heavy duty recessed steering turntables and are fully approved for MOT testing

ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

Description

  • Integrated eccentric brake system
  • Emergency stop valve
  • Obstruction system
  • Pneumatic parking system in height adjustable ratchets
  • Pump and control unit on rear left post; delivered with extra control unit for front right post
  • Pushbutton control unit with alarm signal
  • Hydraulic cylinder under left platform
  • Lifting and lowering by means of cables
  • Emergency lowering valve
  • Both platforms fixed.
  • Platforms prepared for AUTOPSTENHOJ scissor jack

Standard colours:
Platforms & posts: grey RAL 7016, ramps: red RAL 3020

Major ATL/MOT 4830-54 ATL 4830-55 ATL 5230-51 MOT 5230-54 WL ATL 5230-60 ATL 6530-60 MOT 6530-60 ATL
Lifting Capacity, up to 4,800 kg 4,800 kg 5,200 kg 5,200kg 5,200kg 6,500kg 6,500kg
Lifting/Lowering Time 32/26 seconds 32/26 seconds 32/26 seconds 32/26 seconds 32/26 seconds 40/58 seconds 40/58 seconds
Stroke Length  1,670 mm  1,670 mm 1,670 mm  1,670 mm  1,670 mm  1,670 mm  1,670 mm
Working height 1,810 mm 1,810 mm 1,810 mm 1,830 mm 1,840 mm 1,840 mm 1,840 mm
Pump unit 3.0 kW 3.0 kW 3.0 kW 3.0 kW 3.0 kW 3.0 kW 3.0 kW
Voltage 400/3/50-240/1/50 400/3/50-240/1/50 400/3/50-240/1/50 400/3/50-240/1/50 400/3/50-240/1/50 400/3/50-240/1/50 400/3/50-240/1/50
Total length 6,250 mm 6,400 mm 6,000 mm 6,250 mm 6,000 mm 7,260 mm 7,260 mm
Platform width 630 mm 630 mm 630 mm 630 mm 630 mm 630 mm 630 mm
Useable length of platform 5,350 mm 5,500 mm 5,100 mm 5,350 mm 6,000 mm 6,000 mm 6,000 mm
Height 2,235 mm 2,235 mm 2,235 mm 2,235 mm 2,235 mm 2,235 mm 2,235 mm
Wheel base, min. – max. variable variable variable variable variable variable variable
Distance between platforms 915 mm 915 mm 840 mm 835 mm 915 mm 915 mm 915 mm
Drive-on height 140 mm 140 mm 140 mm 160 mm 170 mm 170 mm 170 mm
Width between posts 3,000 mm 3,000 mm 3,000 mm 3,000 mm 3,000 mm 3,000 mm 3,000 mm
Total width – outer edges base plates 3,432 mm 3,432 mm 3,432 mm 3,432 mm 3,432 mm 3,432 mm 3,432 mm
Part Number Description
672675 (426B) Pair of run on ramps for recessed lift installation
672678 (426B) Pair of run on ramps for surface mounted lift installation
672659 (426B) Pair of end stops
GEMLIGHT320 (426B) LED lighting kit (4 x 160cm tubes)
GEMJB28/4/2 (426B) Jacking Beams
672379 (430B) Pair of run on ramps for recessed lift installation
672678 (430B) Pair of run on ramps for surface mounted lift installation
672659 (430B) Pair of end stops
GEMLIGHT320 (430B) LED lighting kit (4 x 160cm tubes)
GEMJB28/4/2 (430B) Jacking Beams
672379 (530B) Pair of run on ramps for recessed lift installation
672979 (530B) Pair of run on ramps for surface mounted lift installation
672659 (530B) Pair of end stops
GEMLIGHT320 (530B) LED lighting kit (4 x 160cm tubes)
GEMJB28/4/2 (530B) Jacking Beams

Download Brochure
4830-54 ATL Drawing
Major 4830-55 ATL Drawing
5230-51 MOT Drawing
5230-54 WL ATL Drawing
5230-60 ATL Drawing
6530-60 MOT Drawing
6530-60 ATL Drawing

10144-3-YEAR-WARRANTY-LOGO

This lift comes with a 3 year parts and labour warranty which is subject to proof of maintenance.

Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Rollers, printer paper and printer ink.

Proof of maintenance will be required in the event of a warranty claim.

We offer a wide range of service contracts for this lift, please contact 0844 249 8101 for more information.

To download the HSE document for thorough examinations and testing of lifts follow the link below.

HSE Document
