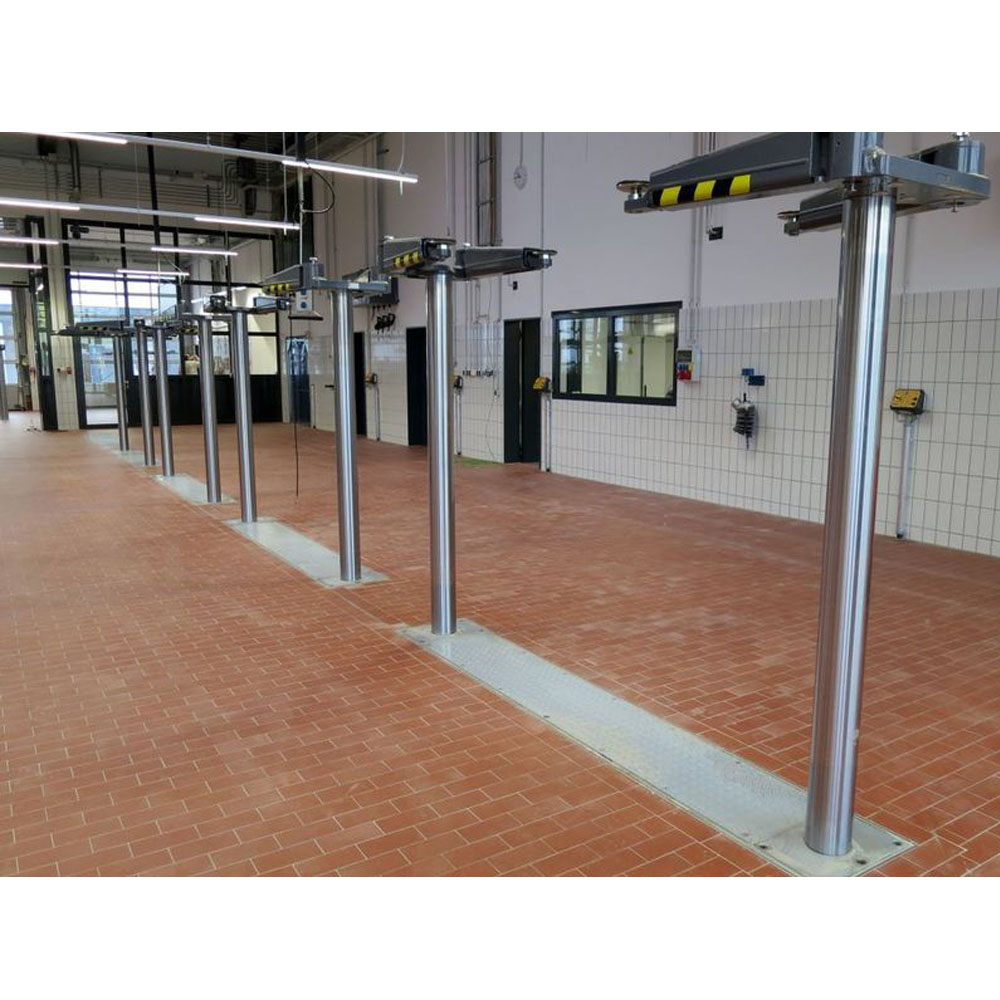

Masterlift 2.35 Saa Electro-hydraulic twin-ram lift, 3.5 t capacity, superstructure with arms
Description
Steel cassette:
- Waterproof steel cassette
Hydraulic unit:
- Hard-chrome plated cylinder
- Flexible synchronization and safety system
- Corrosion-free guiding elements
- Hydraulic pump unit with immersed motor
- Ecological hydraulic fluid
- Pneumatic emergency lowering
- Programmable pushbutton control unit
Superstructure:
- Double-telescopic arms
- Internal arm locking system
- Low minimum height – perfect for sports cars – with a minimum height of 70mm (sport version)
| Specifications | Masterlift 2.35 Saa 230/260 – Universal | Masterlift 2.35 Saa 230/260 – Sport |
|---|---|---|
| Lifting Capacity | 3500kg | 3500kg |
| Cylinder Diameter | 2 x 123mm (Saa 230) 2 x 140mm (Saa 260) | 2 x 123mm (Saa 230) 2 x 140mm (Saa 260) |
| Lifting/Lowering Time | app. 30 seconds / app. 30 seconds | app. 30 seconds / app. 30 seconds |
| Minimum Height | 95mm – 135mm | 70mm – 95mm |
| Maximum Height | 2020mm – 2085mm | 2020mm – 2085mm |
| Motor Size | 3 kW | 3 kW |
| Power Required | 3 Phase (16amp Isolator required) | 3 Phase (16amp Isolator required) |
| Operation | Electro-hydraulic | Electro-hydraulic |
| Description |
|---|
| Large program of extra pads |
| Special colours available on request |
This lift comes with a 3 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Consumable items including lifting pads/blocks.
Proof of maintenance will be required in the event of a warranty claim.
To download the HSE document for thorough examinations and testing of lifts follow the link below.
