AUTOPSTENHOJ MagiX 45 Series 4.5 Tonne Scissor Lifts

Home » Garage Equipment » Vehicle Lifts » Scissor Lifts » AUTOPSTENHOJ MagiX 45 Series 4.5 Tonne Scissor Lifts

Other Images - click on image to view

The AUTOPSTENHOJ MagiX 45 Series of  scissor lifts compromises of four different models  with three choices of platform lengths. These lifts have an impressive lifting capacity of 4.5 tonnes and the integral/secondary lifting versions are capable of up to 4 tonnes .

As with all other AUTOPSTENHOJ scissor lifts, these lifts are electro-hydraulically operated and are fitted with a clever safety device should a pipe burst.  In addition all models include LED lighting, 1000mm drive on ramps (suitable for surface mounted  applications), end stops, hose covers and expansion bolts.

Description

  • Double master / slave system

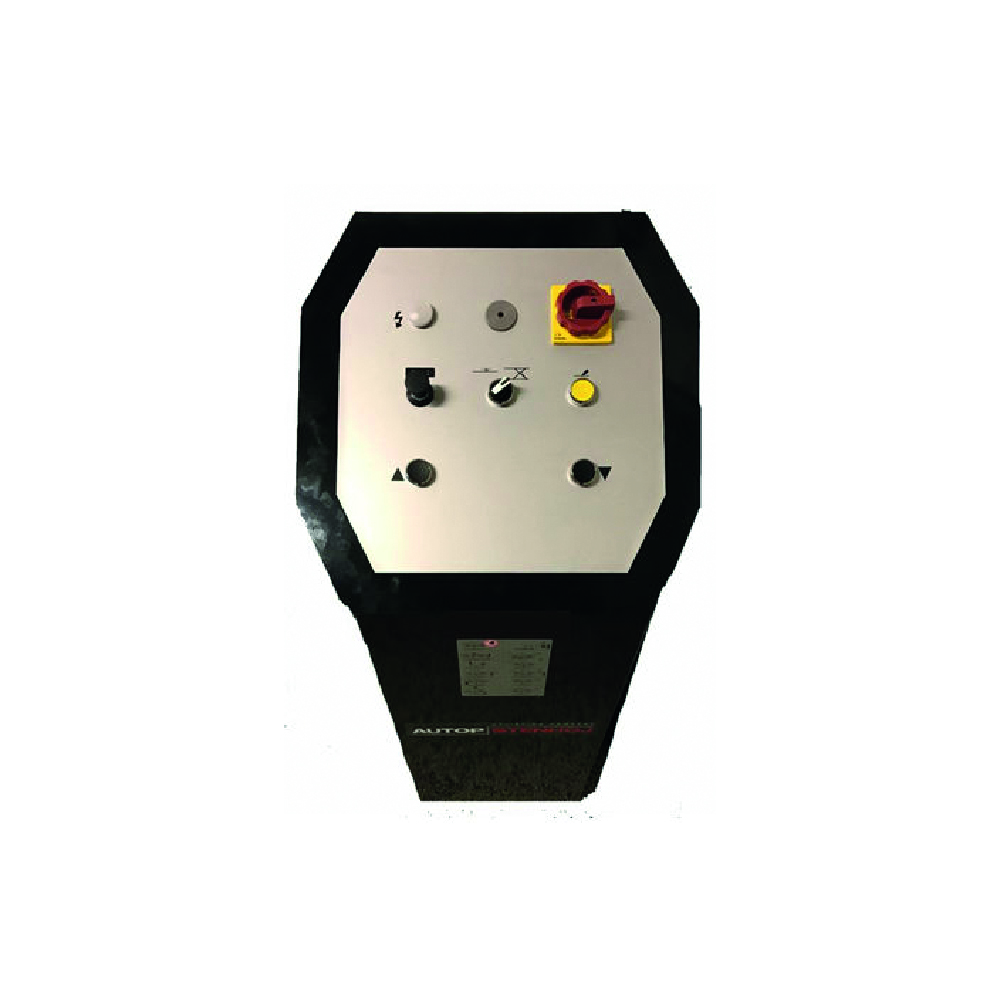

  • Control stand with integrated pump unit and alarm signal
  • Electronic synchronization
  • Emergency lowering valve
  • Sturdy scissor construction
  • No mechanical connection between scissor sections
  • Optimum access to vehicle
  • Low minimum height
  • Variable fitting width

WL versions for wheel alignment also feature a special locking device (parking mechanism) for accurate wheel alignment.

The four models to choose from are as follows :

S model – Standard flat platforms (no integral/secondary lifting)

S Combi model – Standard flat platforms with integral/secondary lifting

WL model – Wheel alignment model with rear slip plates  and front recesses for turn plates (turn plates excluded) without integral/secondary lifting

WL combi model – Wheel alignment model with rear slip plates  and front recesses for turn plates (turn plates excluded) with integral/secondary lifting

ALL AUTOPSTENHOJ lifts are led through a sling purifying plant (according to SA2.50 – ISO-Norm 8501-1:2007), dipped in primer and finally led through an electrostatic powder bake plant.

MagiX 45 S S Combi WL WL Combi
Lifting Capacity  4500kg 4500kg 4500kg 4500kg
Seconday Lift  N/A 4000kg N/A 4000kg
Lifting/Lowering Time  50 seconds 50 seconds 50 seconds 50 seconds
Platform Height 220mm 220mm 220mm 220mm
Maximum Height  1900mm 1900mm + 400mm 1900mm 1900mm +400mm
Platform Length  4500mm or 4800mm or 5200mm 4500mm or 4800mm or 5200mm 4500mm or 4800mm or 5200mm 4500mm or 4800mm or 5200mm
Platform Width  660mm 660mm 660mm 660mm
Jacking beam rails Yes No Yes No
Overall width of lift  2120mm – 2320mm 2120mm – 2320mm 2120mm – 2320mm 2120mm – 2320mm
Motor Size 3kw 4kw 3kw 4kw
Power Required 3 phase (16amp isolator required) 3 phase (16amp isolator required) 3 phase (16amp isolator required) 3 phase (16amp isolator required)
Operation Electro-hydraulic Electro-hydraulic Electro-hydraulic Electro-hydraulic
Part Number Description
N/A
  • Set of expansion bolts
N/A
  • Guiding edges for scissor jack for Combi-versions
N/A
  • Set of rubber blocks, 40, 60, 70, 80 and 100 mm
N/A
  • Play detector
N/A
  •  Special colours available on request
Download Brochure
Download Drawing (MS45 WL)
Download Drawing (Combi 52)
Download Drawing (combi 48)
Download Drawing (Combi 52)
Download Drawing (combi 45)
Download Drawing (Combi 48)
Download Drawing (combi 52)
Download Drawing (Combi 45)
Download Drawing (Combi 48)

10144-3-YEAR-WARRANTY-LOGO

This lift comes with a 3 year parts and labour warranty which is subject to proof of maintenance.

Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Consumable items including rubber blocks.

10145-maintenance

This lift also comes with a first annual service maintenance package (6 monthly – 2 visits) included when you buy from GEMCO.
Proof of maintenance will be required in the event of a warranty claim.

To download the HSE document for thorough examinations and testing of lifts follow the link below.

HSE Document
