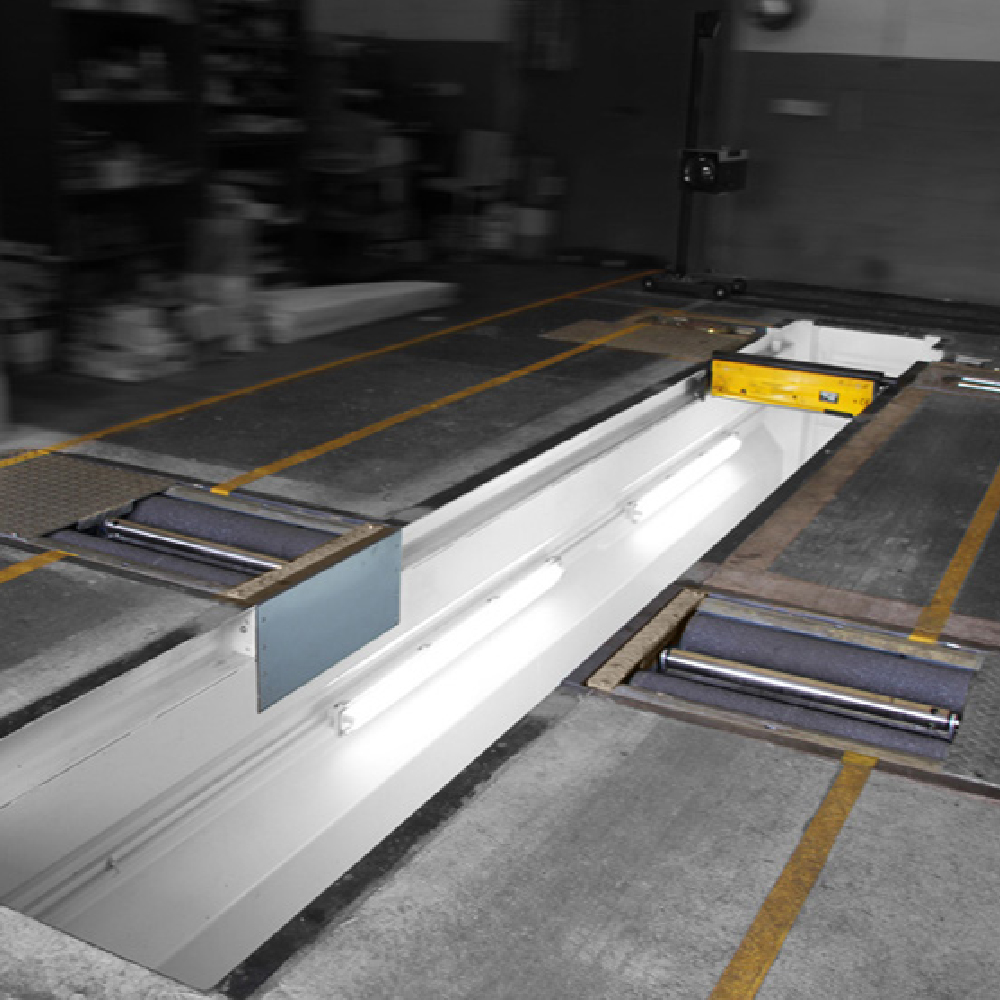

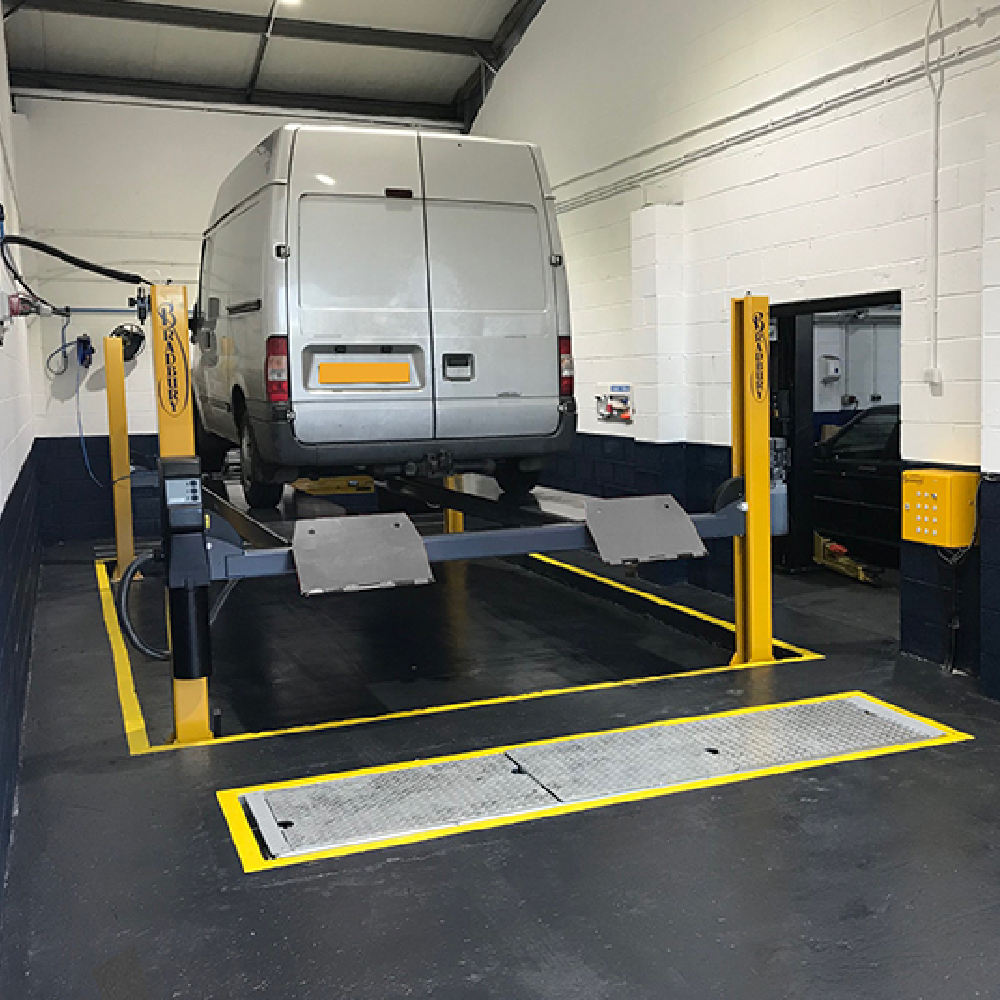

The Bradbury 1070S (ATL One Man) Brake Tester is approved for class 4 & 7 testing (ATL) One man operation using a tablet as standard.
• Extended tablet range – up to 50m
• Fully galvanised roller beds with unique long-life roller surface
• Can be linked to emission analyser or separate PC/Trolley available
• Supplied with 15m communications and motor cable
• Easy exit, traction drive out system
• Motorcycle (Class I & II) upgrade available
• Single person operation with 7” tablet
• Tablet supplied as standard with rugged case
• Single bed system, easily retrofitted into your existing recess
• Manual and automatic test procedures
• Galvanised roller cover plates as standard
• 10″ tablet available at additional cost
The brake tester is supplied as standard with a 2 year parts & labour warranty!*
*subject to annual calibration contract – exclusions apply
Please note that specifications can change at anytime.
All of our brake testers include a patented drive out system – EDOS
1070S (Class 4 & 7 ATL Brake Tester) | Specification |
---|---|
Overall size of unit ( L x W x H) | 2925mm x 680mm x 250mm |
Diameter of rollers | 205mm |
Standard length of rollers | 1000mm |
Maximum axle test weight | 4000kg axle (6000kg drive over) |
Gear motor size | 5.5kw x2 |
Test speed | 4.6km/h |
Maximum brake force measurement | 1250kgf |
Power requirement | 32amp motor rated – 3 phase |
Tablet operated | Yes |
Linkable to gas & smoke | Yes |
This brake tester comes with a 2 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Rollers, printer paper and printer ink.
Proof of maintenance will be required in the event of a warranty claim.
We offer a wide range of service contracts for this brake tester, please contact 0844 249 8101 for more information.
