The Bradbury H4483ATL & H4483ATL LWB Approved 4 Post ATL Lifts are suitable for one man MOT testing of class IV, VII & VL vehicles and have been specifically designed to accommodate workshops with less space. As standard, these lifts feature a powerful pneumatically operated play detector which are operated with a robust wireless handset and heavy duty turntables recessed into the platforms.

Key Features

· Safe & Reliable Hydraulic Operation

· Complete with recessed radius plates and air operated play detector

· Low profile platform

· Anti tilt system

· Emergency stop button

· Automatic parking system

· Eccentric brake system

· DVSA Approved for IV, VII and VL Testing

· Magnetic wireless handset as standard

· 3 tonne lateral and rotational play detector as standard

**Please note that the colour may vary from that shown in the picture, new colours for 2021 are Grey RAL7016 with yellow Bradbury Decals**

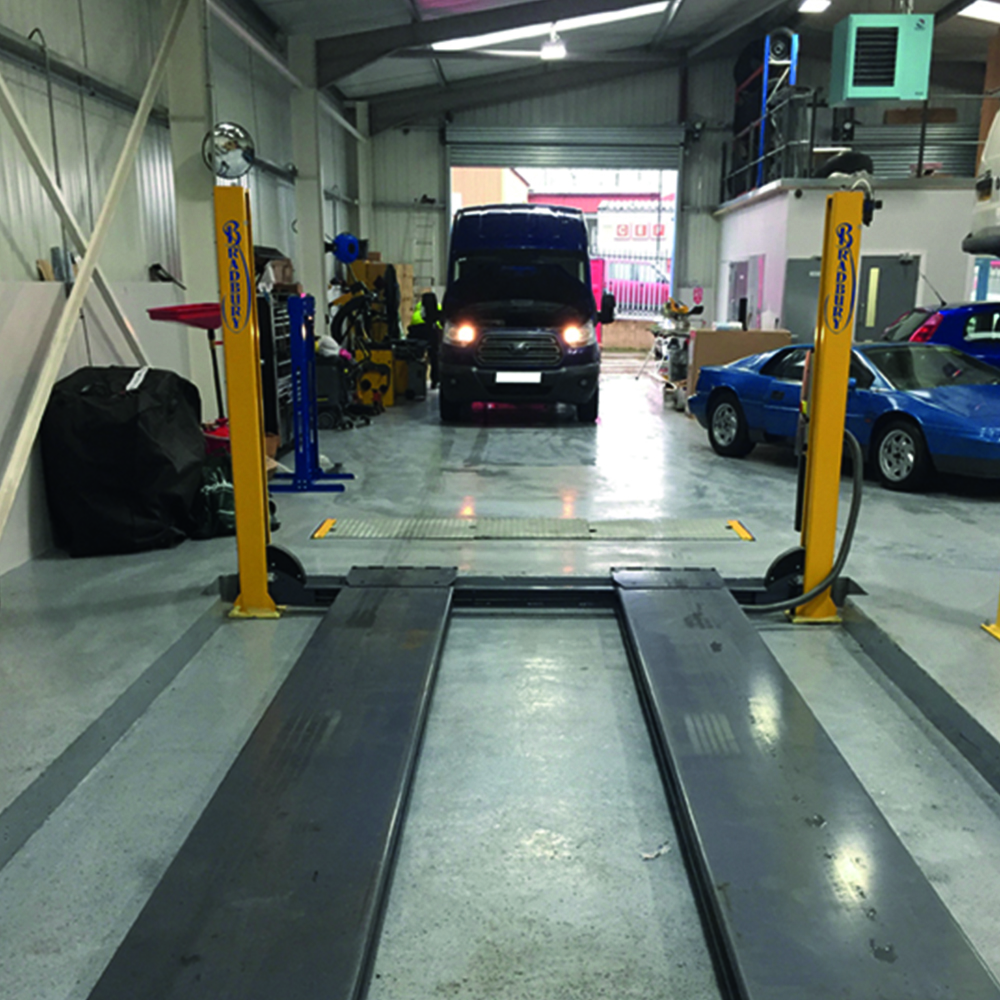

View recent installation photos of this lift
H4483ATL H4483ATL LWB
Lifting Capacity  4800kg  4800kg
Lifting/Lowering Time  24 – 26 seconds 24 – 26 seconds
Platform length  5560mm 5710mm
Overall length  5630mm 5780mm
Overall width  3430mm 3430mm
Drive through width 3000mm 3000mm
Each platform width  630mm 630mm
Distance between platforms 835mm 915mm
Minimum/maximum lifting height 140mm/1800mm 140mm/1800mm
Electrical Supply – 3 Phase Motor 380 – 415V, 3kW Motor 380 – 415V, 3kW
Operation Electro-Hydraulic Electro-Hydraulic
Air supply 8 Bar 8 Bar
Jacking Beams
GEMLIGHT320
Download Brochure
Download Drawing

This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.

Warranty exclusions :
Accident damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only

Proof of maintenance will be required in the event of a warranty claim.

We offer a wide range of service contracts for this lift, please contact 0844 249 8101 for more information.
