Bradbury H4653ATL LWB 6.5 Tonne Class IV, VII & VL ATL Electro-Hydraulic Lift

Home » Garage Equipment » MOT Equipment » MOT & ATL Lifts » Bradbury H4653ATL LWB 6.5 Tonne Class IV, VII & VL ATL Electro-Hydraulic Lift

Other Images - click on image to view

The Bradbury H4653ATL LWB Approved 4 Post ATL Lift is suitable for one man MOT testing of class IV, VII and VL vehicles and has been specifically designed to accommodate all long wheel based vehicles. As standard, this lift features a powerful pneumatically operated play detector which is operated with a robust wireless handset and heavy duty turntables recessed into the platforms.

Key Features

· Safe & Reliable Hydraulic Operation

· Complete with recessed radius plates and air operated play detector

· Low profile platform

· Anti tilt system

· Emergency stop button

· Automatic parking system

· Eccentric brake system

· DVSA Approved for IV, VII and VL Testing

· Specifically designed to accomodate all long wheel based vehicles

· Magnetic wireless handset as standard

· 3 tonne lateral and rotational play detector as standard

**Please note that the colour may vary from that shown in the picture, new colours for 2021 are Grey RAL7016 with yellow Bradbury Decals**

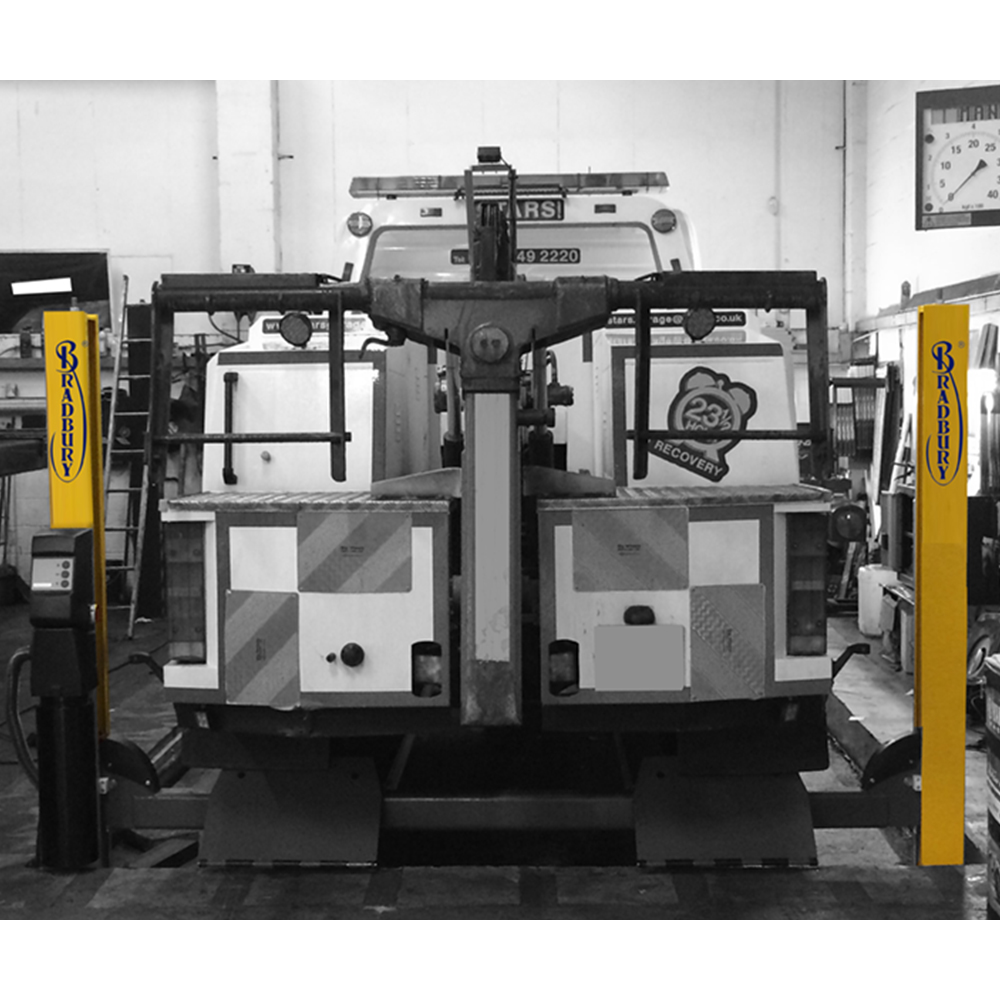

View some installations of this lift
H4653ATL LWB Technical Specifications
Lifting capacity 6500kg
Lifting/ lowering time 24 – 26 seconds
Platform length 6210mm
Overall length 6280mm
Overall width 3300mm
Drive through width 3000mm
Each platform width 633mm
Distance between platforms 915mm
Minimum/maximum lifting height 140/1840mm
Electrical Supply – 3 Phase Motor 380 – 415V, 3kW
Operation Electro-Hydraulic
Air Supply 8 Bar
Jacking Beams
Download Brochure
Download Drawing

This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.

Warranty exclusions :
Accident damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only

Proof of maintenance will be required in the event of a warranty claim.

We offer a wide range of service contracts for this lift, please contact 0844 249 8101 for more information.

To download the HSE document for thorough examinations and testing of lifts follow the link below.
HSE Document
