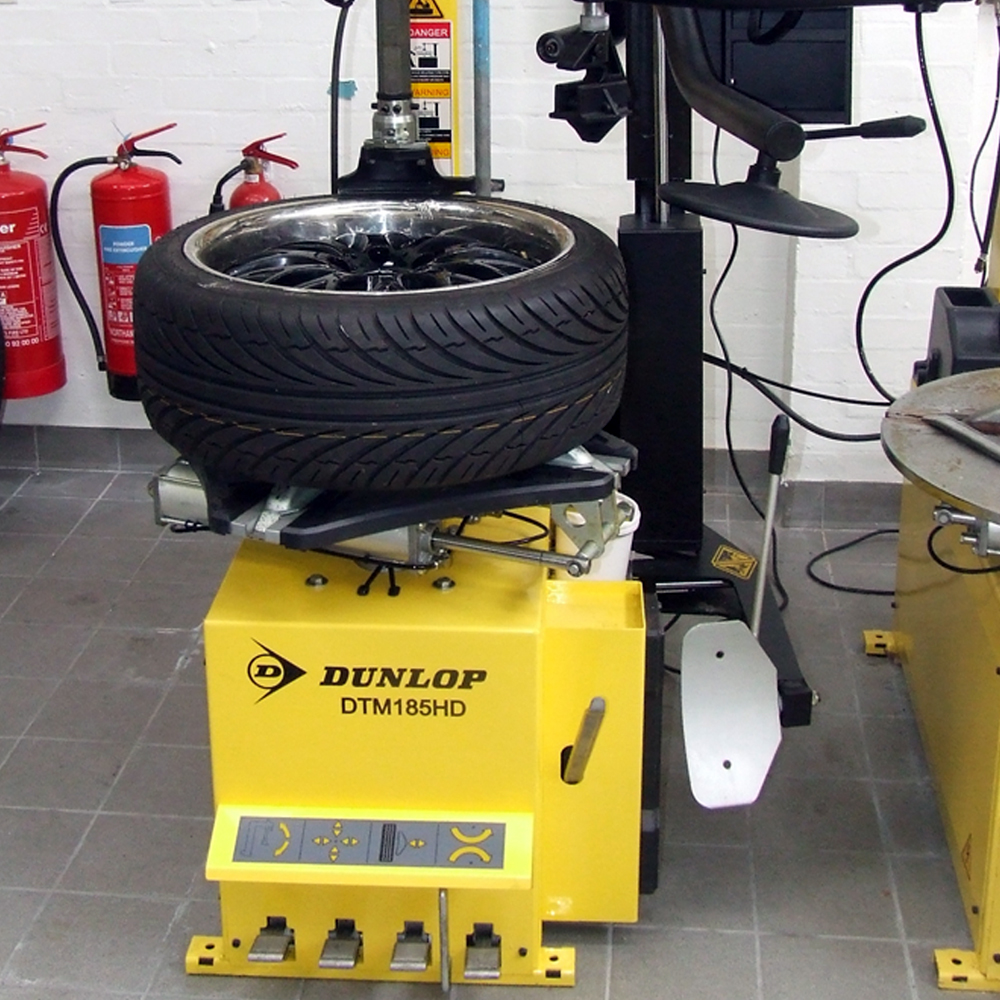

The Dunlop DTM185HD Tyre Machine is a fully automatic tyre machine which is suitable for run flat and low profile tyres. As standard, this tyre machine features an alloy protection cover for the turntable. A tubeless inflation model (DTM185HDTI) is also available.

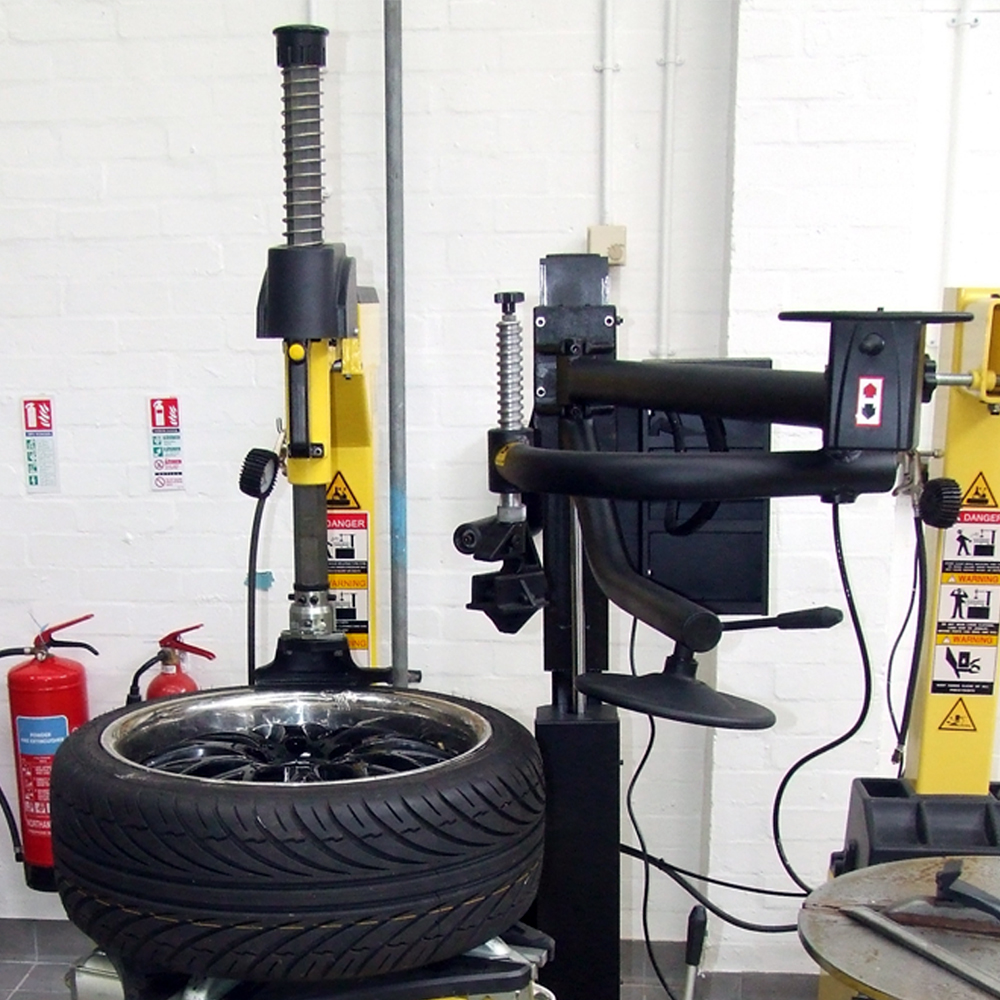

This tyre machine can be fitted with an assist arm to aid the user with changing low profile and run flat tyres (WCAA optional extra)
All Dunlop tyre machines are built up and tested in our UK test facility prior to being sent out.
CE Approved
| DTM185HD | Technical Specification |
|---|---|
| Clamping capacity (outside / rim diameter) | 11″ – 22″ |
| Clamping capacity (inside diameter) | 13″ – 24″ |
| Rim width | 3″ – 13″ |
| Maximum wheel diameter | 1040mm |
| RPM | 7 RPM |
| Operating pressure | 8 – 10 BAR |
| Air required | Yes |
| Bead breaker force | 2,500kg |
| Electrical supply | 220 / 240 Volt (1 phase) |
| Size of demount shaft | 41mm |
| Size of slider arm | 55mm |
| Part Number | Description |
|---|---|
| DTMKIT | Tyre machine starter kit complete with 100 tubeless valves, 100 long tubeless valves, plastic valve mounting tool, mounting paste & lubricant brush. |
| ST-4/KH | Quick release demount head with plastic mounting head tool. |
| QT-20 | Plastic protector for tyre lever |
This tyre changer machine comes with a 1 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Consumable items including all plastic protection devices for the turntable, demount head and the bead breaker.
We offer a wide range of service contracts for this tyre changer machine, please contact 0844 249 8101 for more information.
