Samoa 504 Series Hose Reels – 15m (Open Type)

Home » Garage Equipment » Dispensers & Drainers » Hose Reels » Grease » Samoa 504 Series Hose Reels – 15m (Open Type)

Other Images - click on image to view

The Samoa Heavy Duty reinforced double pedestal hose reel for air, low and high pressure water, medium pressure oil and high pressure grease. All metal construction, can handle up to 15 m (50’) of 1/2″ hose (included).

Main features:

  • Brass forged shaft compatible with a wide range of fluids ensures corrosion free and leak proof operation.
  • Very robust reinforced all steel Heavy Duty construction with double pedestal arm design.
  • Special fatigue resistant steel spring for years of durable performance. Epoxy powder coated for increased wear resistance.
  • Positionable outlet arms for an optimum operation in any mounting position: wall, ceiling, floor or tank.
  • No special maintenance required.

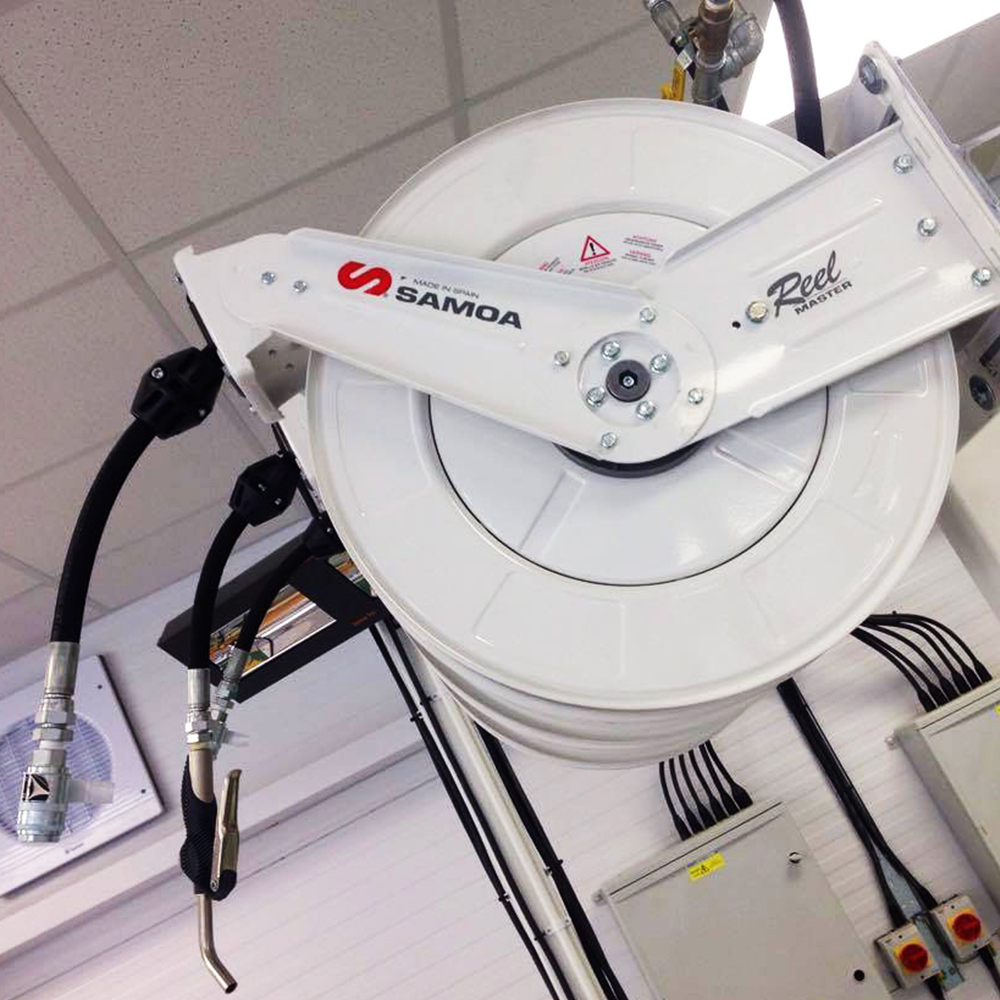

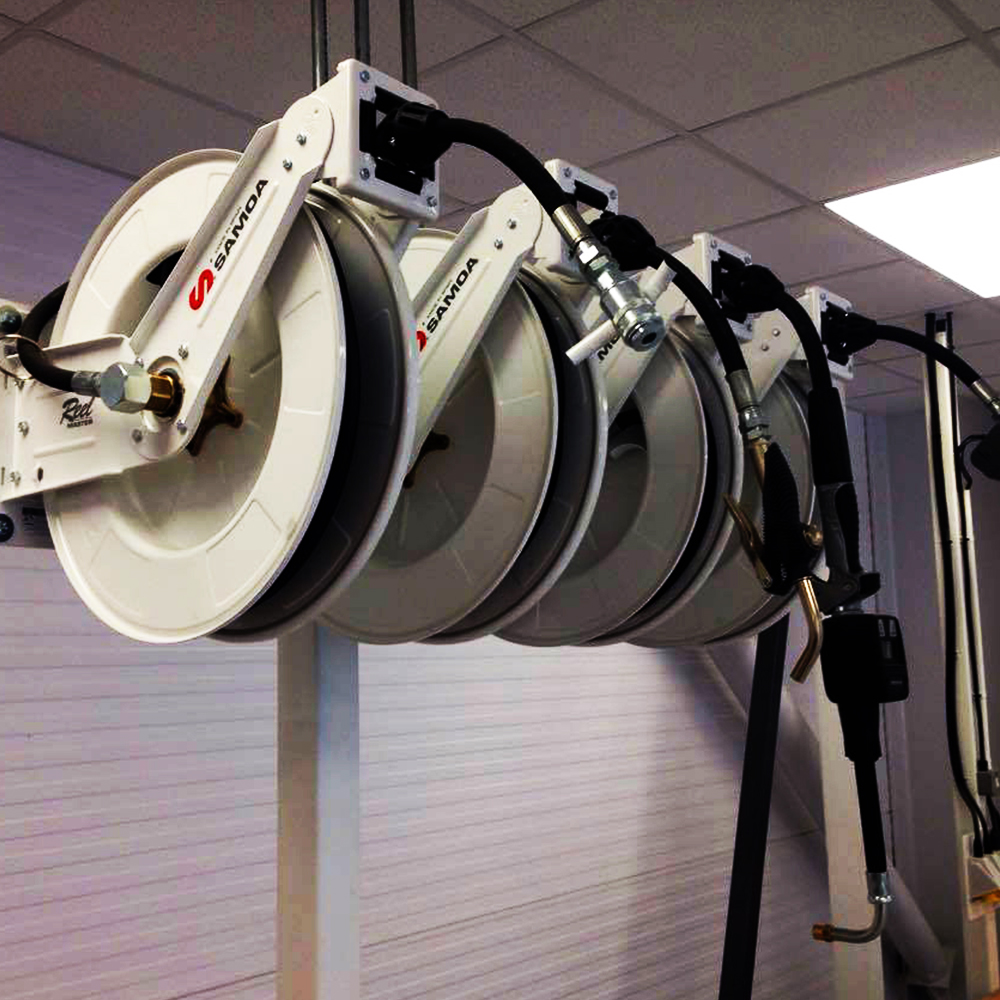

>>View some installations of this product
>>View the Samoa product catalogue


Part Number Hose Reel (Included) Control Gun (Included) Application
513154  504100  Air Coupling  Compressed Air
513154  504100  Low Pressure Gun  Water
513155  504200  Oil Control Gun  Oil/Antifreeze
513248  504200  Hose End Meter  Oil/Antifreeze
513259  504200  Present Hose End Meter  Oil/Antifreeze
513150  504300  Grease Control Gun  Grease
Download Brochure
Enquire about this product
