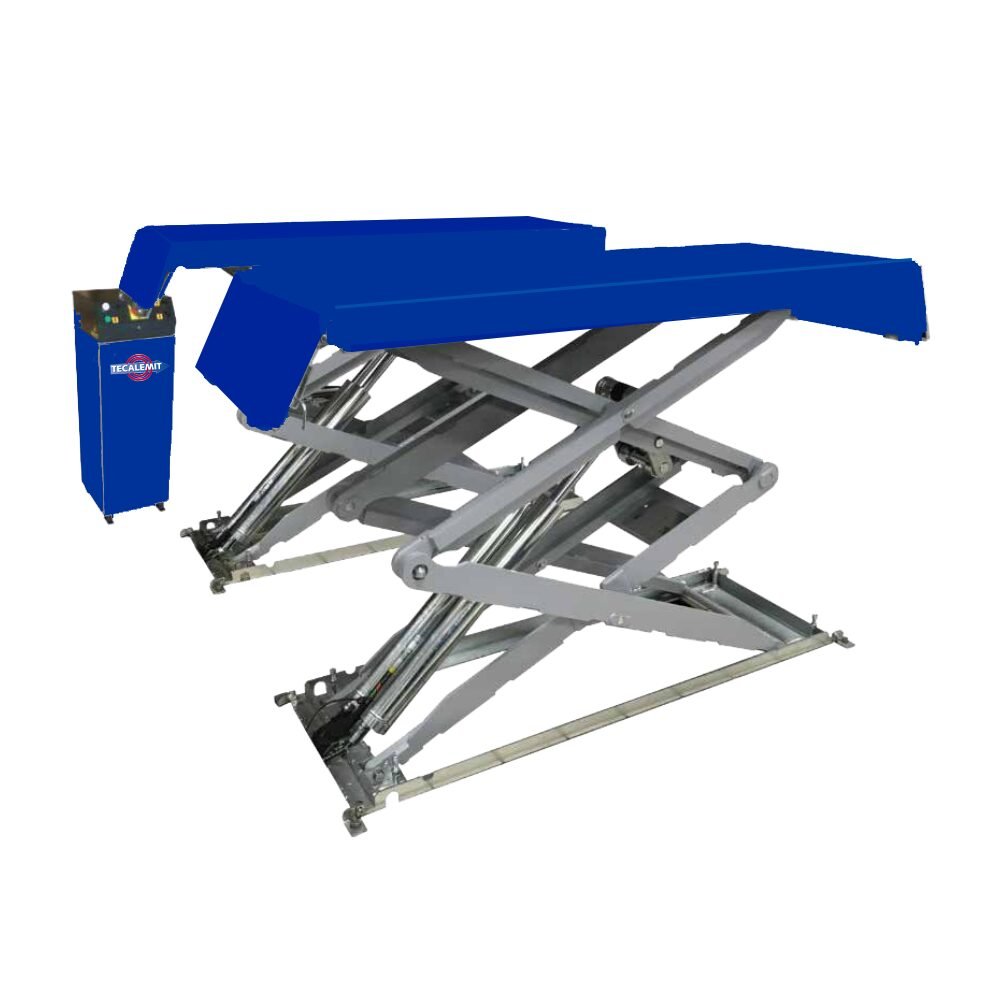

Tecalemit 3.5 Tonne Full Rise Short Platform Scissor Lift

£0.00

The SF7563 is a high-quality, Italian-made 3.5 tonne, full-rise scissor lift. This model includes fully galvanised, lockable run-on ramps that can be secured into a horizontal position along with a fully galvanised base. Featuring a solid 3.5 tonne lifting capacity, a maximum height of over 2000mmm and a low minimum height of 115mm.

This lift is a must-have for anyone wanting a good quality scissor lift at an affordable price.

Part Number: SF7563

The SF7563 is a high-quality, Italian-made 3.5 tonne, full-rise scissor lift. This model includes fully galvanised, lockable run-on ramps that can be secured into a horizontal position along with a fully galvanised base. Featuring a solid 3.5 tonne lifting capacity, a maximum height of over 2000mmm and a low minimum height of 115mm.

This lift is a must-have for anyone wanting a good quality scissor lift at an affordable price.

Part Number: SF7563

Technical Specifications
Lifting Capacity3.5 Tonne
OperationHydraulic
Power Requirements3 Phase
Isolator RequiredNo
Motor size3kW
Platform Length2120mm
Platform Width 630mm
Minimum Height110mm
Maximum Height125mm
Front Arm LengthN/A
Rear Arm LengthN/A
Drive Through WidthN/A
Lifting/Lowering Time40 Seconds
Part NumberSF7563

Product Details

  • This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.

    Warranty exclusions :
    Accidental damage, consumable items including lift pads, vandalism (non-fair wear and tear), equipment upgrades or modifications, removal/movement of equipment, acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.

    Proof of maintenance will be required in the event of a warranty claim.

    • No additional information for this product

    • No optional extras for this product

Design Specification
HSE Document
