AC Hydraulic - Hand Hydraulic Press - 100 Tonne

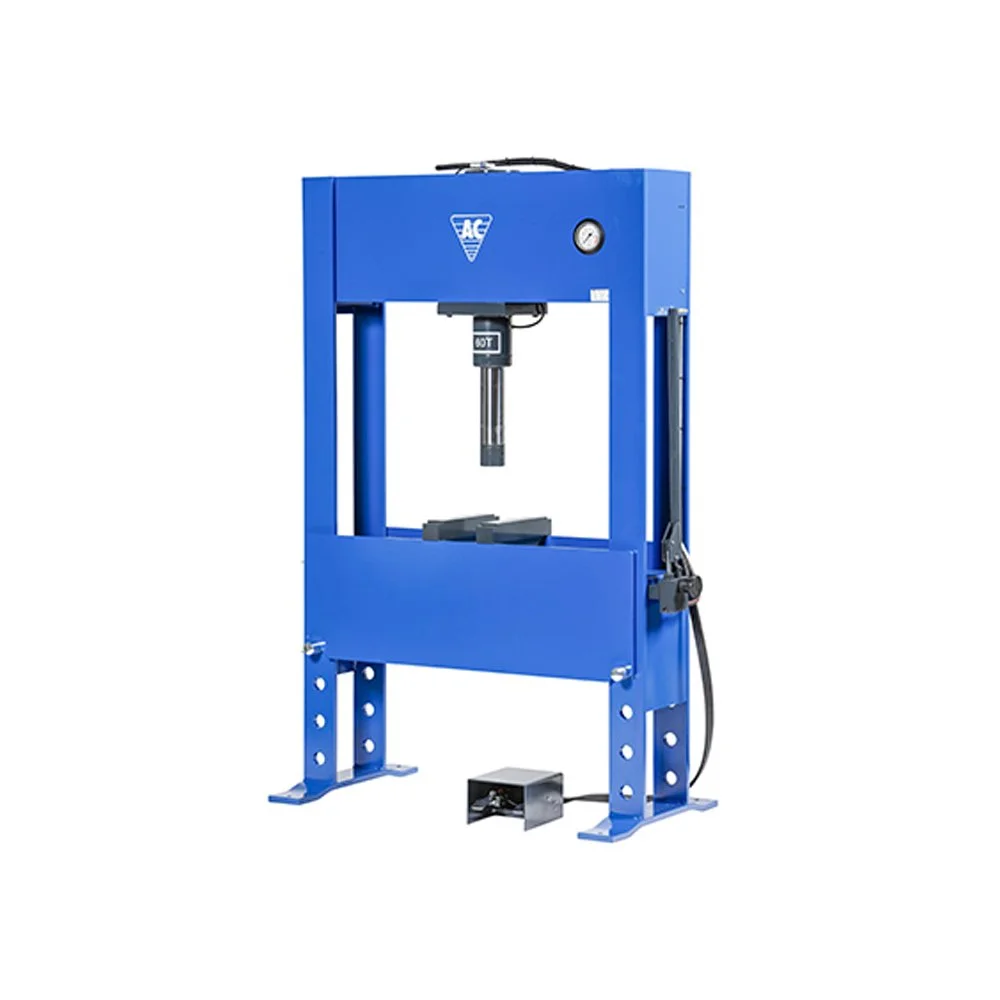

AC Hydraulic P100H Hand hydraulic press for truck workshops and heavy industry.
Foot-operated double-acting pneumatically controlled high speed leaving both hands free for quick and precise positioning of item.
Traversing ram. With 300 mm stroke for dealing with demanding jobs. Built-in pressure gauge at convenient eye level. Wide, welded frame and press table ensuring high flexibility. Ram-operated adjustment of table. Built-in safety overload valve. Removable ram end cap for mounting of various piston heads. Supplied with 2 vee blocks.
AC Hydraulic P100H Hand hydraulic press for truck workshops and heavy industry.
Foot-operated double-acting pneumatically controlled high speed leaving both hands free for quick and precise positioning of item.
Traversing ram. With 300 mm stroke for dealing with demanding jobs. Built-in pressure gauge at convenient eye level. Wide, welded frame and press table ensuring high flexibility. Ram-operated adjustment of table. Built-in safety overload valve. Removable ram end cap for mounting of various piston heads. Supplied with 2 vee blocks.
AC Hydraulic P100H Hand hydraulic press for truck workshops and heavy industry.
Foot-operated double-acting pneumatically controlled high speed leaving both hands free for quick and precise positioning of item.
Traversing ram. With 300 mm stroke for dealing with demanding jobs. Built-in pressure gauge at convenient eye level. Wide, welded frame and press table ensuring high flexibility. Ram-operated adjustment of table. Built-in safety overload valve. Removable ram end cap for mounting of various piston heads. Supplied with 2 vee blocks.
| Technical Specifications | ||
|---|---|---|
| Capacity | 100 Tonne | |
| Stroke | 300mm | |
| Height | 2040mm | |
| Width | 1600mm | |
| Width Between Legs | 1100mm | |
| Depth Between Legs | 325mm | |
| Adjustable Platform | N/A | |
| Clearance | 75mm - 675mm | |
| Weight | 1200kg | |
| Part Number | P100H |
Product Details
-
PS 70 010 00 Press plate with set of piston heads (Ø 10, 12, 15, 17, 20, 22, 25, 30 mm, adaptor and rack)
Protection screens for optimum safety. Designed for maximum operator safety and fits all our presses. Steel mesh with shatterproof plexi glass. Protection screen with extreme high breakage point. Fitted with two handles and gas springs for infinitely variable positioning. Can be adjusted according to required working height. In conformity with the CE regulation according to Machine Directive 2006/42/EC. Different screens for all our presses.
