| Technical Specifications | ||
|---|---|---|
| Lifting Capacity | 5 Tonne | |
| Operation | Electro-hydraulic | |
| Power Requirements | 3 Phase | |
| Isolator Required | No | |
| Motor size | 3kW | |
| Platform Length | 5200mm | |
| Platform Width | 630mm | |
| Minimum Height | 255mm | |
| Maximum Height | 1850mm | |
| Front Arm Length | N/A | |
| Rear Arm Length | N/A | |
| Drive Through Width | Variable | |
| Lifting/Lowering Time | 50 Seconds | |
| Part Number | 005981 |
Product Details
-
This lift comes with a 3 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, consumable items including lift pads, vandalism (non-fair wear and tear), equipment upgrades or modifications, removal/movement of equipment, acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Proof of maintenance will be required in the event of a warranty claim. -

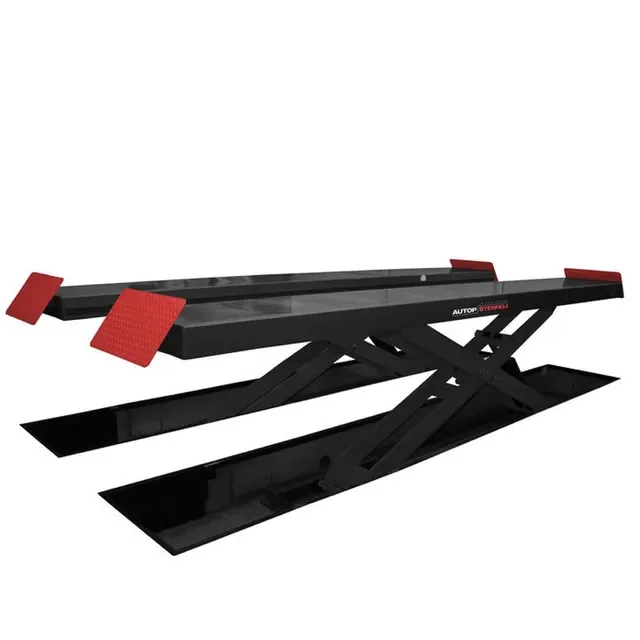

The MagiX 50-52 offers optimum access to the vehicle as there are no mechanical connections between the scissor elements.
The synchronisation is done electronically via a proportional valve for vibration-free lifting and lowering.
The platforms are sandblasted and powder-coated as standard for a long-lasting great appearance.
-
Recess for turn-plates.
Rear slip plates for wheel alignment and secondary lifting.
Set of expansion bolts
Rubber blocks
KTL coating for platforms
LED lightning set
Installation frame for recessed installation
Air hydraulic scissor jack
Different ramps
