Emanuel SM 160/7 – Four Post Lifts - Commercial Vehicle Lift

£0.00

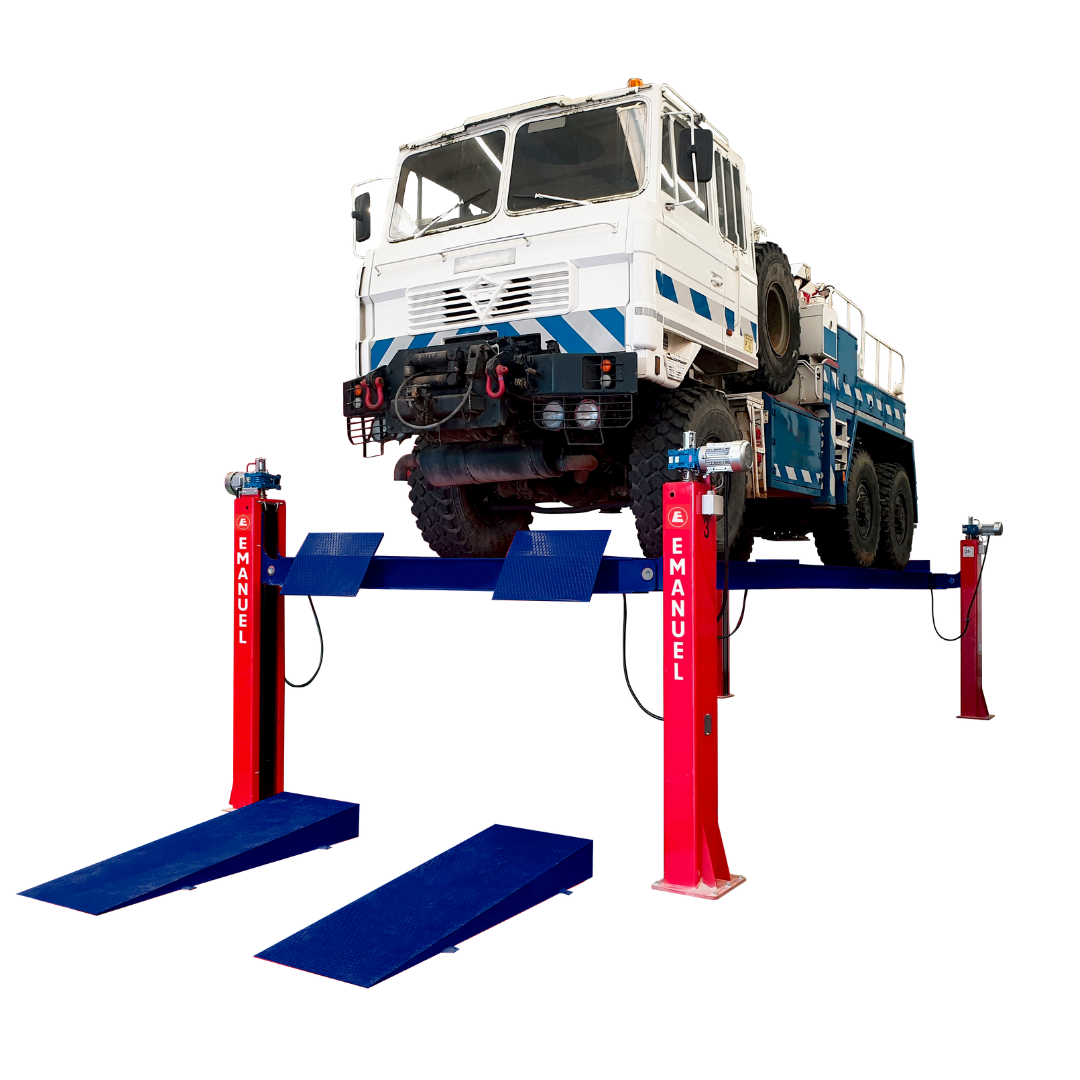

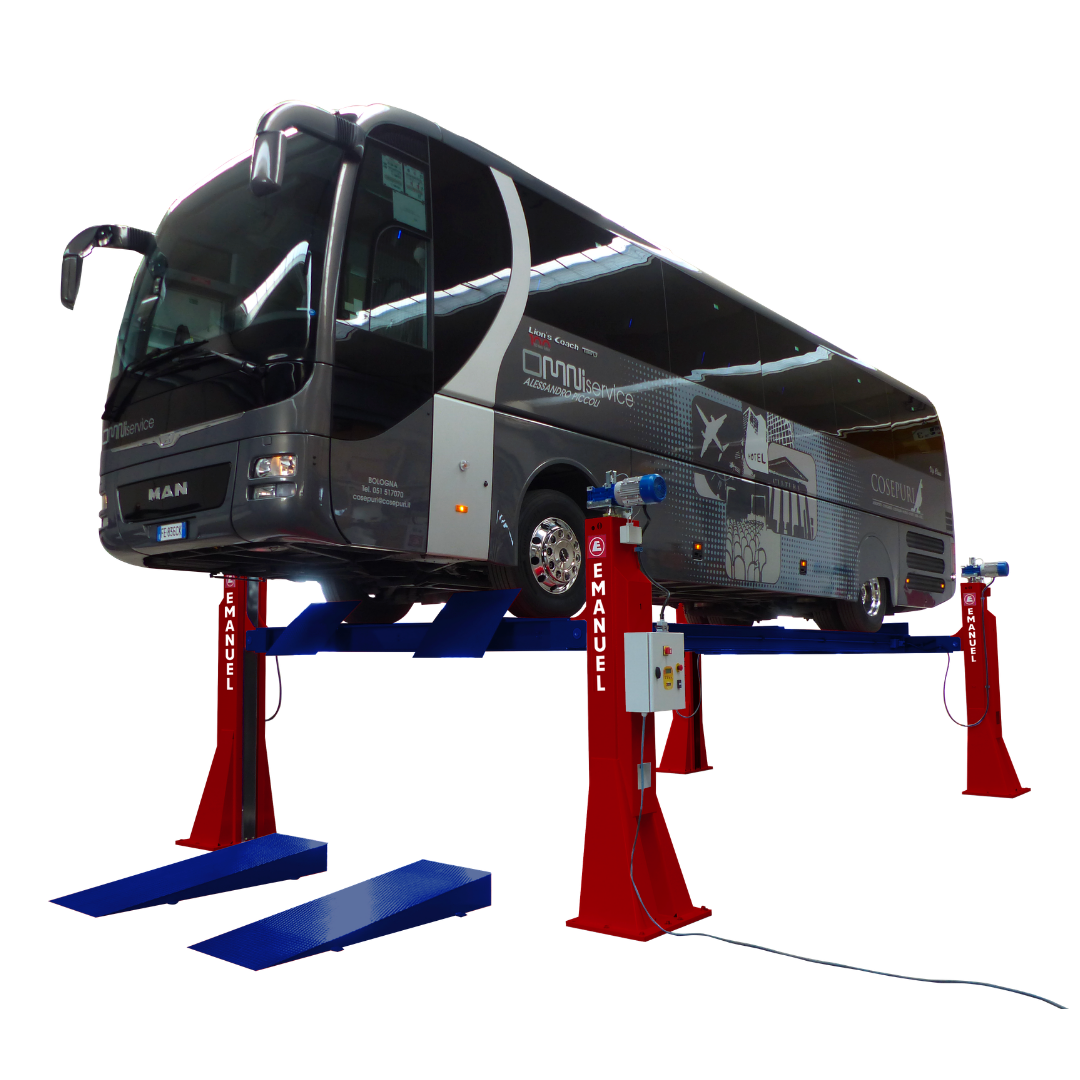

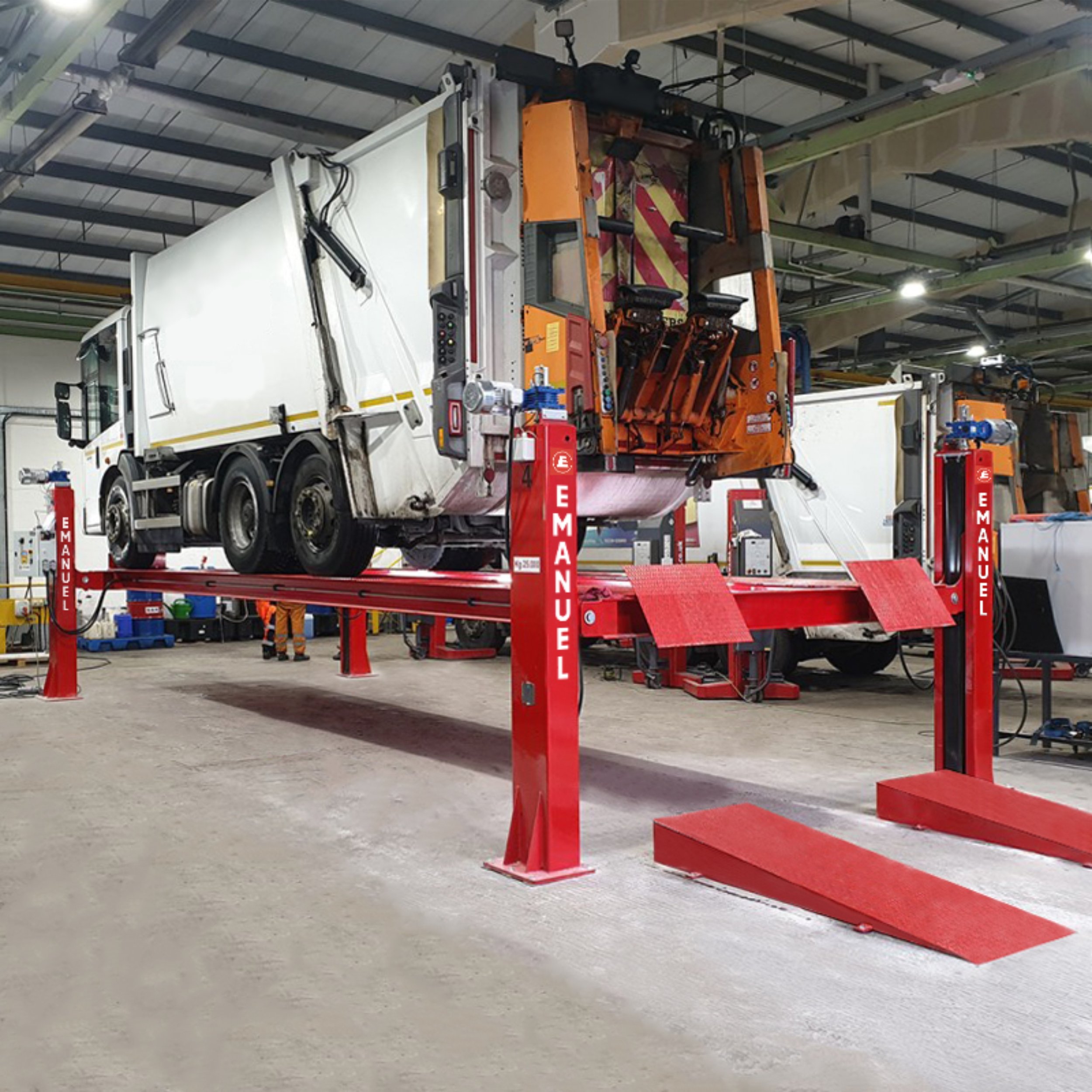

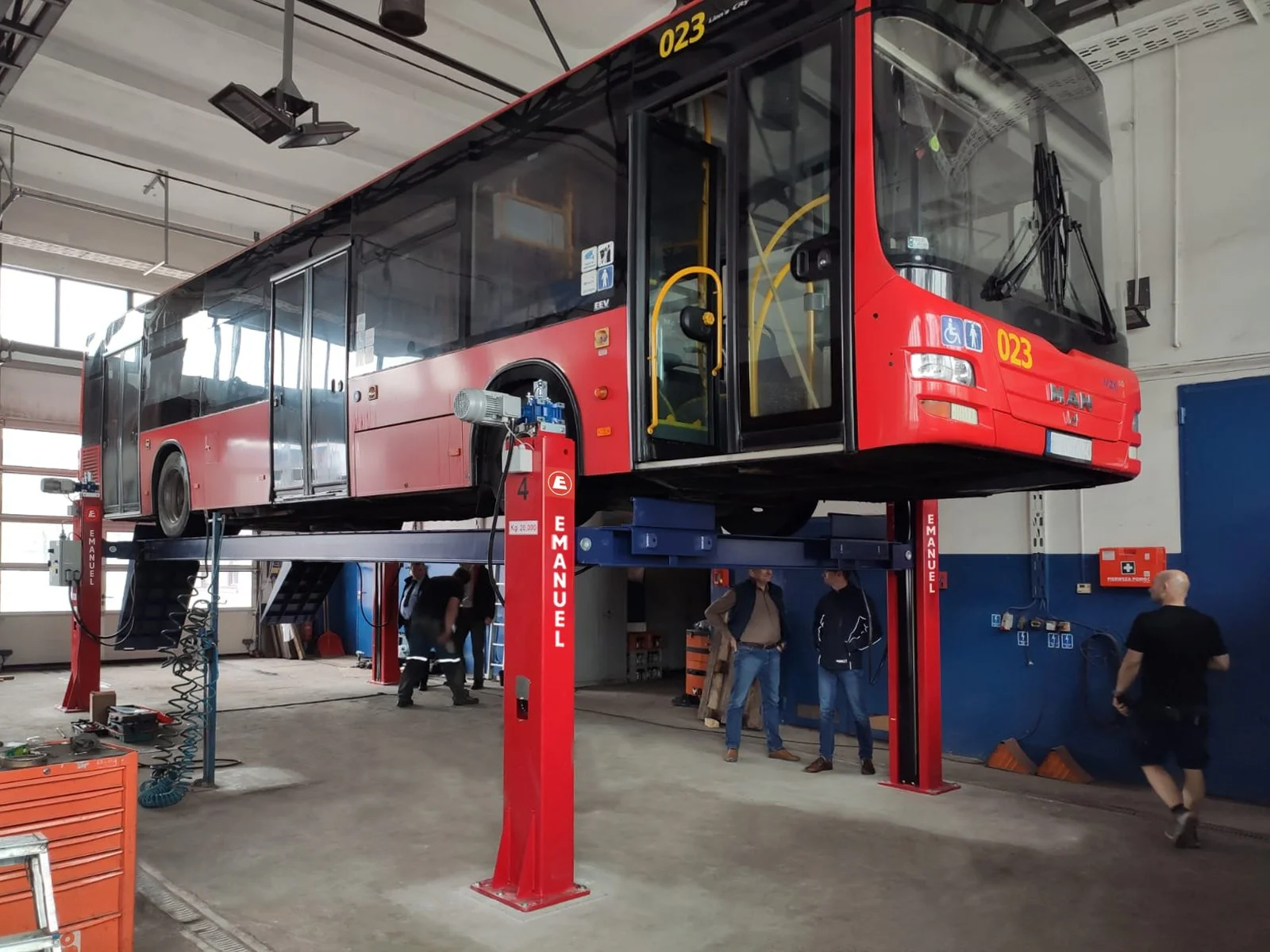

The Emanuel SM160/7 is a heavy-duty four-post lift designed for commercial vehicle workshops. Offering a 16-tonne lifting capacity and 7-metre platforms, it provides a safe and reliable fixed lifting solution for a wide range of buses, trucks and commercial vehicles.

Its electromechanical lifting system features automatic column alignment, continuous safety monitoring and an LCD control display. Available in surface-mounted or recessed versions, the SM160/7 combines robust construction, dependable performance and low maintenance requirements.

Galvanised option available.

Part Number: SM160/7

The Emanuel SM160/7 is a heavy-duty four-post lift designed for commercial vehicle workshops. Offering a 16-tonne lifting capacity and 7-metre platforms, it provides a safe and reliable fixed lifting solution for a wide range of buses, trucks and commercial vehicles.

Its electromechanical lifting system features automatic column alignment, continuous safety monitoring and an LCD control display. Available in surface-mounted or recessed versions, the SM160/7 combines robust construction, dependable performance and low maintenance requirements.

Galvanised option available.

Part Number: SM160/7

Technical Specifications
Lifting Capacity16 Tonne
OperationMechanical
Power Requirements3 Phase
Isolator RequiredNo
Motor size4x 2.2 kW
Platform Length7000mm
Minimum Height210mm
Maximum Height1870mm
Platform width700mm
Width between platforms (adjustable)Yes (1200-1100mm)
Drive Through Width3325mm
Lifting/Lowering Time510 mm/min at 50 Hz / 570 mm/min at 60 Hz
Part NumberSM160/7

Product Details

  • This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.

    Warranty exclusions :

    Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.

    Rollers, printer paper and printer ink.

    Proof of maintenance will be required in the event of a warranty claim.

    We offer a wide range of service contracts for this lift, please contact 0345 872 2400 for more information.

    To download the HSE document for thorough examinations and testing of lifts follow the link below.

    • No additional info for this product.

  • N/A

Design Specification
Download Product Brochure
HSE Document
