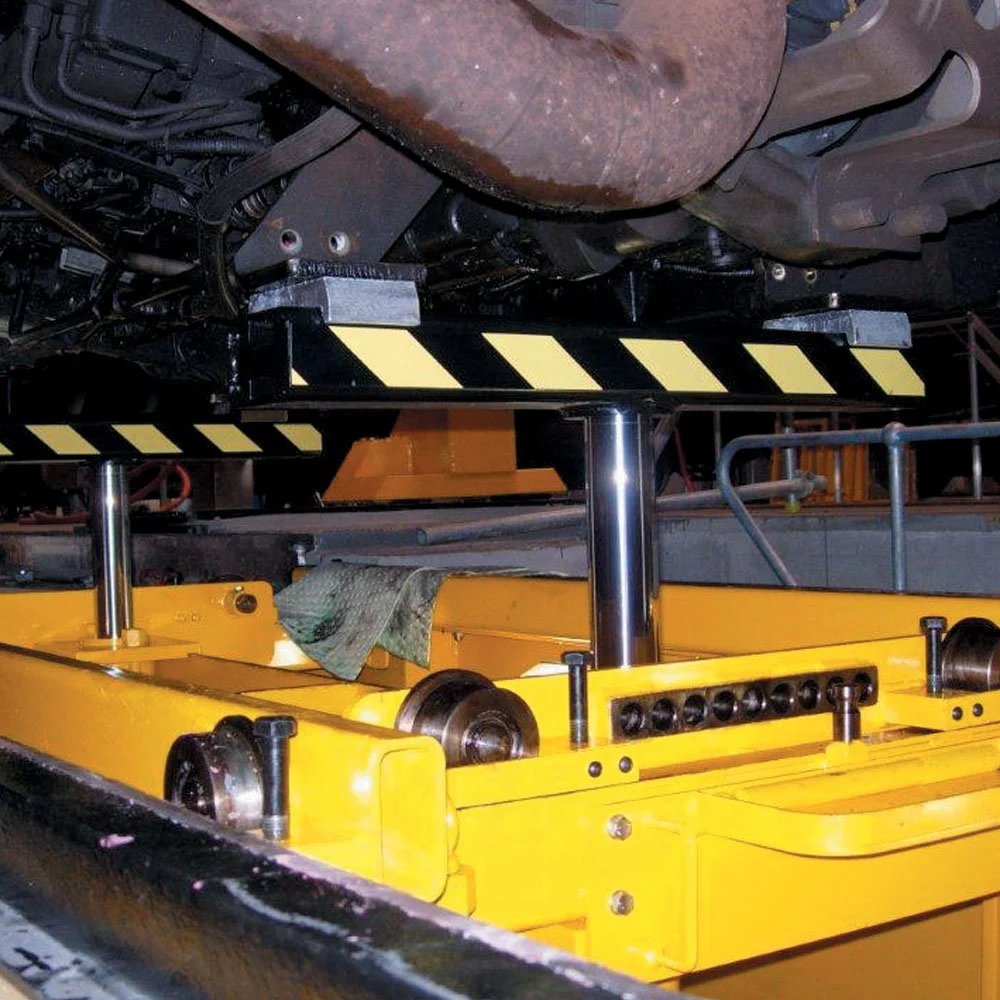

GEMCO Majorlift pit jack lifting a heavy good vehicle.
GEMCO HPJ12 Majorlift 12 tonne manually operated pit jack
GEMCO Majorlift pit jack air operating instructions.
GEMCO Majorlift pit jack lifting a heavy good vehicle.
GEMCO HPJ12 Majorlift 12 tonne manually operated pit jack

Gemco HPJ12 Majorlift 12 Tonne Manually Operated Pit Jack

£0.00

Gemco Majorlift 12 Tonne Manually Operated Pit Jack - custom made to suit any pit - HPJ12.

The 12 Tonne Pit Jack features two 6 tonne rated rams deliver the lifting power which is controlled through air/hydraulics to provide two lifting speeds, with positive mechanical locking (preventing accidental lowering) for enhanced safety.

Designed for the commercial vehicle workshop, the 12-tonne rated jack offers all the performance and safety features of the 20-tonne range for heavier vehicles such as military, quarry, mining and railway vehicles.

Each pit jack is custom-designed to your specific requirements and is fitted with arms suitable for your lift or pit.

DESIGNED AND BUILT IN BRITAIN.

Part Number: HPJ12

Gemco Majorlift 12 Tonne Manually Operated Pit Jack - custom made to suit any pit - HPJ12.

The 12 Tonne Pit Jack features two 6 tonne rated rams deliver the lifting power which is controlled through air/hydraulics to provide two lifting speeds, with positive mechanical locking (preventing accidental lowering) for enhanced safety.

Designed for the commercial vehicle workshop, the 12-tonne rated jack offers all the performance and safety features of the 20-tonne range for heavier vehicles such as military, quarry, mining and railway vehicles.

Each pit jack is custom-designed to your specific requirements and is fitted with arms suitable for your lift or pit.

DESIGNED AND BUILT IN BRITAIN.

Part Number: HPJ12

Product Details

Technical Specifications
Capacity12 Tonne
Lifting Stroke305mm
Pressure Relief ValveYes
Spring Loaded RollersNo
Weight of Unit287kg
Part NumberHPJ12

  • No warranty with this product.

    • Eccentric brake system

    • 4250 - 10 tonne spreader beam (1240mm)

    • 4350 - 10 tonne spreader beam (1400mm)

    • 4450 - 10 tonne spreader beam (1450mm)

    • 4500 - Diff adaptor

    • 4101 - ‘V’ crutch

    • 4102 - Dish crutch lifting pad

    • 4103 - Chassis crutch lifting pad

    • 4104 - 4” extension tube

    • 4105 - 6” extension tube

    • 4106 - 10” extension tube

    • 4107 - 18” extension tube

    • 4109 - Serrated saddle (ram end protector)

    • 2627 - 10m polyurethane recoil air hose (air models only)

Adjustable Top Beam
