| Technical Specifications | ||
|---|---|---|
| Wheel Sizes | 10" to 20" | |
| Power Supply | 115-230 Vac / 50 -60 Hz 1pH | |
| Absorbed Power | 500 W | |
| Total Toe | ± 20° | |
| Semi-Toe | ± 10° | |
| Camber | ± 10° | |
| Caster | ± 30° | |
| Kingpin | ± 30° | |
| Part Number | TRIGONTOPVISION |
Product Details
-
This tyre changer machine comes with a 3 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only. -

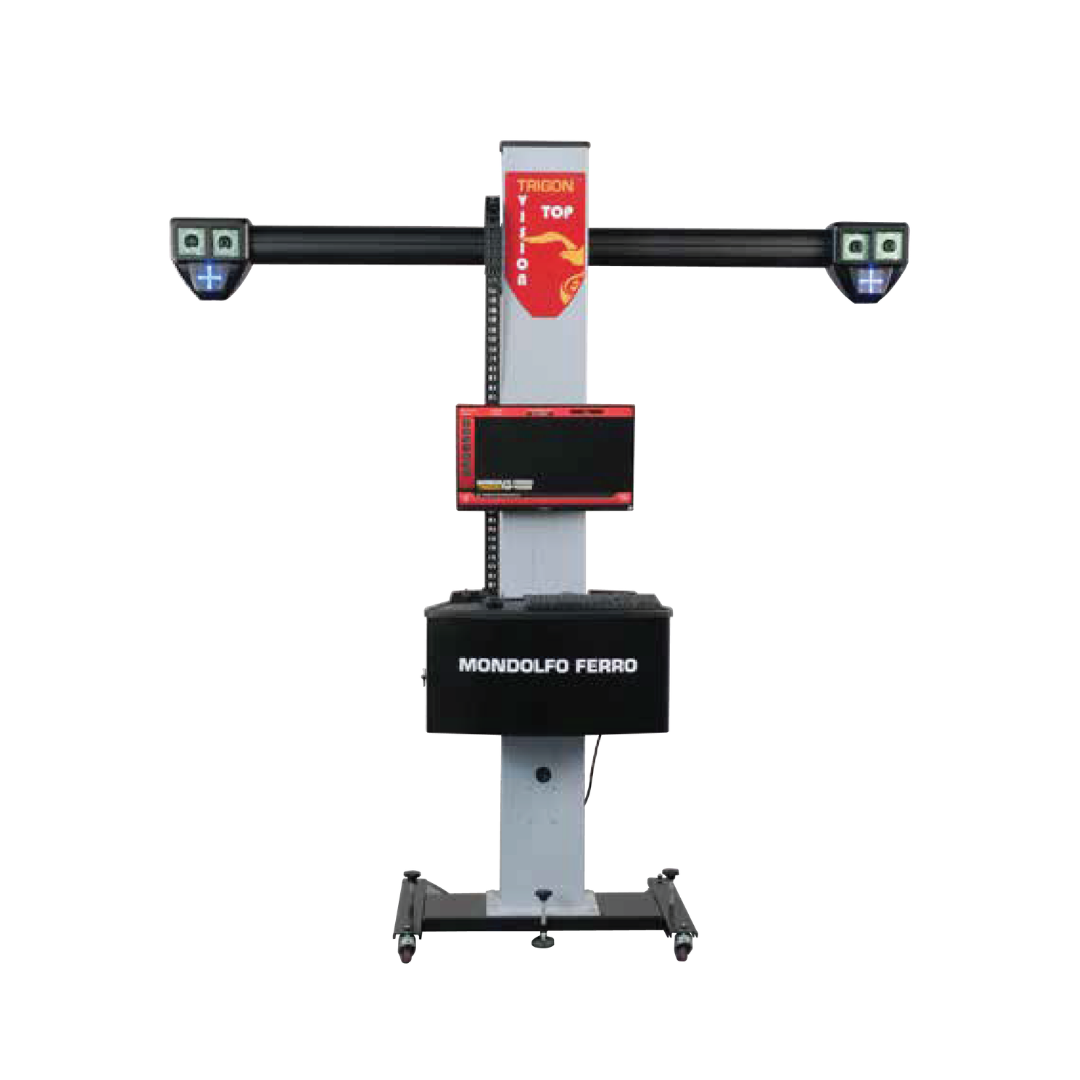

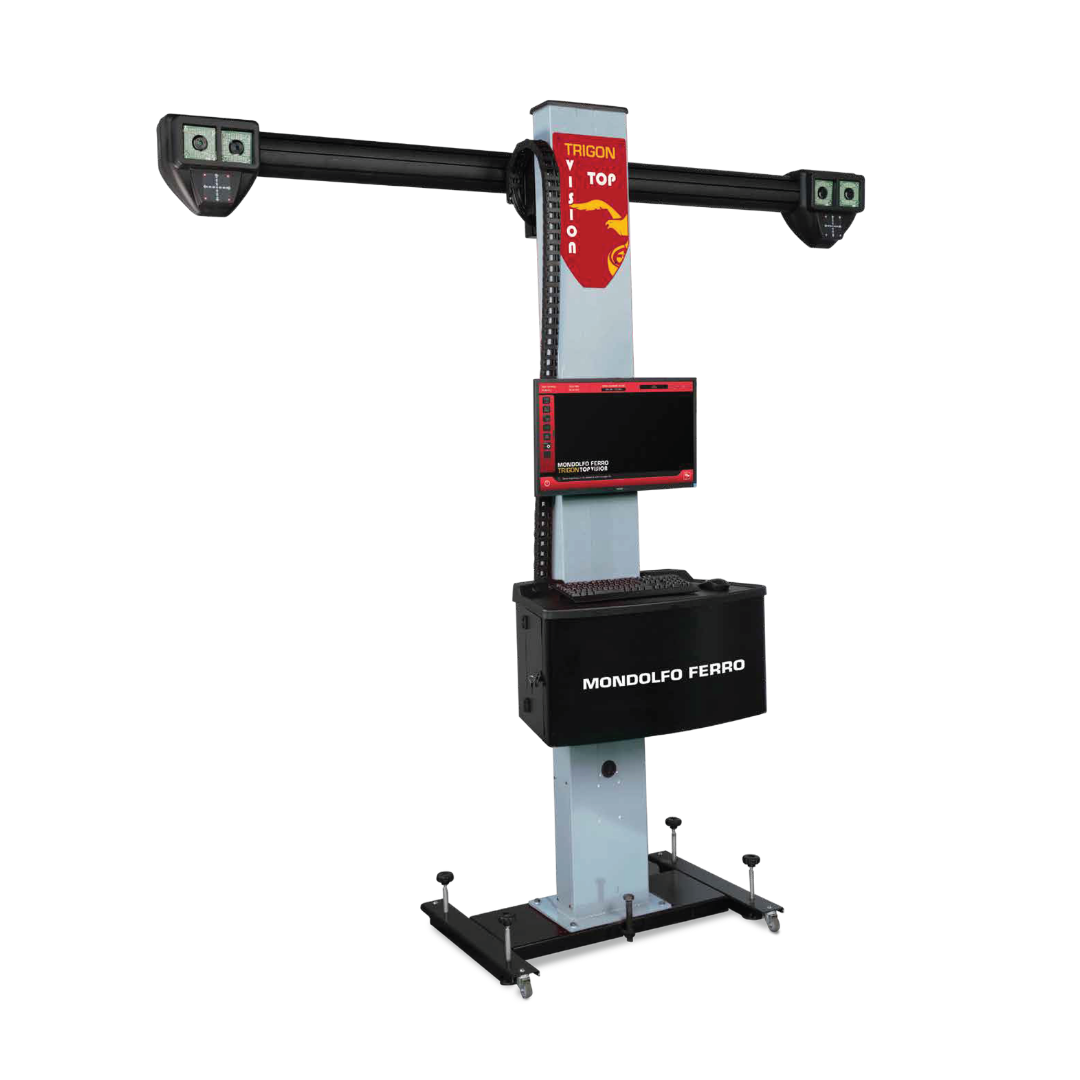

The Mondolfo Ferro Trigon Top Vision high-resolution 3D wheel alignment system for fast and accurate measurements is supplied as a complete kit inclusive of the following:
4 HI-Q digital cameras with anti-reflection nano coating and integrated sunlight filters
High-resolution passive targets with light indication system
Haptic LED display on camera bar for guided operation
Advanced TRIGON TOP wheel alignment software with intuitive graphic interface
International multi-brand vehicle database with over 84,000 vehicle specifications
Column-integrated lift with integrated safety system
Automatic target tracking function (optional)
Dynamic live measurement and chassis status display
Quick and easy ROC SMART runout compensation procedure
User-friendly steering adjustment procedure with live guidance
Progress bar and zoom function for simplified operation
Premium PC with Windows Professional operating system
Ergonomic workstation with additional USB ports
Drive On Assistant for easier vehicle positioning (Optional)
Compatible with pits, scissor lifts, 4-post and parallelogram lifts
PROADAS compatible for ADAS calibration integration
Compact design suitable for workshops with limited installation space
Pre-set for Aligner Online and Cal One-Touch system
-
No optional extras with this product
