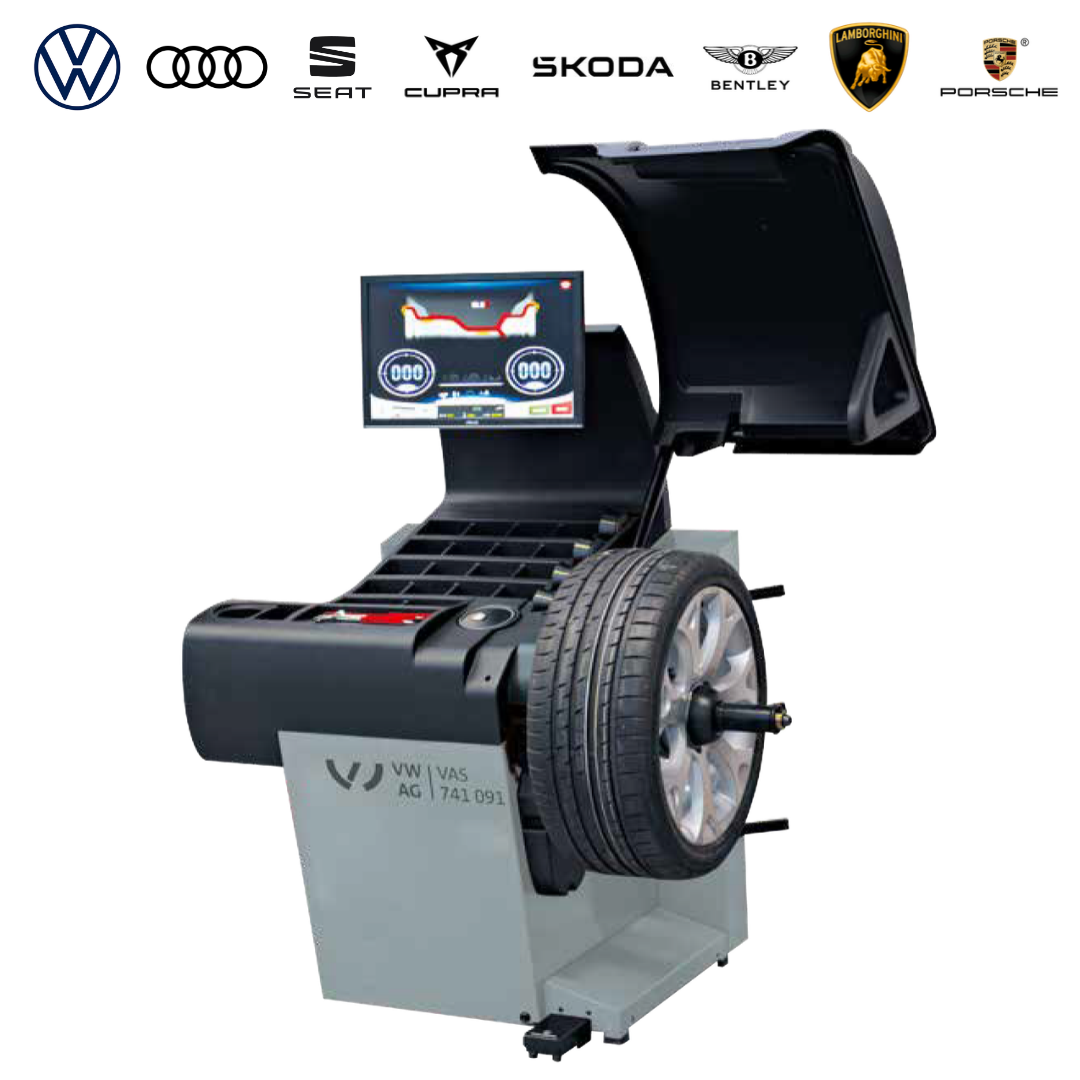

Nexion VAS 741 091 Volkswagen Group-Approved Touchscreen Wheel Balancer

£0.00

The Nexion VAS 741 091 is a Volkswagen Group-approved automatic wheel balancer for passenger cars, motorcycles and light commercial vehicles.

A 22-inch touchscreen provides an intuitive interface for selecting balancing programmes and following each stage of the process. Contactless technology uses high-resolution machine vision and laser sensors to identify the balancing planes and measure the wheel dimensions automatically.

The electromechanical clamping system reduces wheel-loading time and improves centring accuracy. Integrated weight-management programmes also help reduce balancing time and unnecessary counterweight consumption.

Key features include:

  • Volkswagen Group-approved equipment

  • 22-inch touchscreen interface

  • Contactless wheel-dimension measurement

  • High-resolution camera and laser sensors

  • Automatic electromechanical wheel clamping

  • Automatic identification of balancing planes

  • Weight-management programmes

  • Space-saving wheel guard

Part Number:

The Nexion VAS 741 091 is a Volkswagen Group-approved automatic wheel balancer for passenger cars, motorcycles and light commercial vehicles.

A 22-inch touchscreen provides an intuitive interface for selecting balancing programmes and following each stage of the process. Contactless technology uses high-resolution machine vision and laser sensors to identify the balancing planes and measure the wheel dimensions automatically.

The electromechanical clamping system reduces wheel-loading time and improves centring accuracy. Integrated weight-management programmes also help reduce balancing time and unnecessary counterweight consumption.

Key features include:

  • Volkswagen Group-approved equipment

  • 22-inch touchscreen interface

  • Contactless wheel-dimension measurement

  • High-resolution camera and laser sensors

  • Automatic electromechanical wheel clamping

  • Automatic identification of balancing planes

  • Weight-management programmes

  • Space-saving wheel guard

Part Number:

Technical Specifications
Power Requirements1ph
Maximum Wheel Weight85kg
Rim DiameterUp to 32"
Balancing Resolution1g
PrecisionN/A
Balancing TimeN/A
Shaft DiameterN/A
Alloy Wheel ProgrammeN/A
Balancing SpeedN/A
Max Wheel Width600mm
Max Wheel Diameter1118mm
Power Supply115/230V
Part Number

Product Details

  • This wheel balancer comes with a 3 year parts and labour warranty which is subject to proof of maintenance.

    Warranty exclusions :
    Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
    Consumable items including all plastic protection devices for the turntable, demount head and the bead breaker.

    We offer a wide range of service contracts for this tyre changer, please contact 0345 872 2400 for more information.

    • No optional extras for this product.
