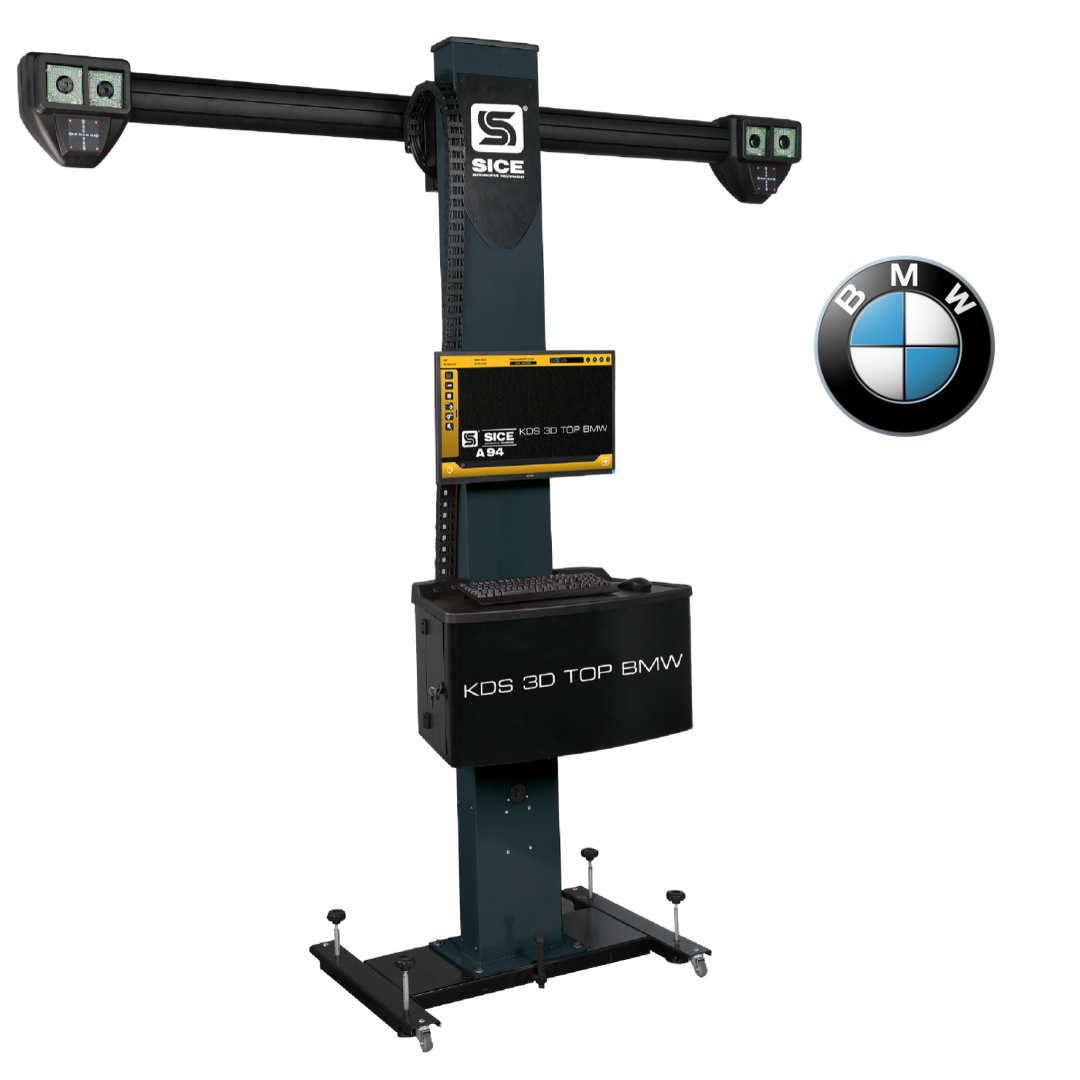

SICE KDS 3D TOP BMW-Approved Wheel Aligner

£0.00

The SICE KDS 3D TOP is an advanced BMW-approved 3D wheel alignment system engineered to deliver exceptional accuracy, consistency and efficiency when servicing modern vehicles.

Four high-resolution HI-Q cameras accurately capture the vehicle’s geometric parameters, while advanced image-processing technology provides reliable and repeatable measurements—even in challenging lighting conditions. High-resolution targets with integrated anti-reflective filters help minimise optical interference and support precise results.

An integrated motorised lifting system automatically tracks the targets as the vehicle lift moves, keeping the measuring beam at the correct height without manual adjustment. This creates a faster, smoother alignment process and helps improve workshop productivity.

Dedicated Exact TOP BMW software guides the operator through each stage using a clear, intuitive interface. Updated calculation algorithms and an extensive international vehicle database support accurate alignment across a wide range of vehicles.

Key features include:

  • Officially approved according to BMW standards

  • Four high-resolution HI-Q digital cameras

  • Automatic target-tracking system

  • High-resolution targets with anti-reflective filters

  • Reliable measurements under challenging lighting conditions

  • Continuous chassis-height measurement using dedicated mini targets

  • Maximum steering-angle measurement

  • Wireless electronic steering-wheel inclinometer

  • Dedicated Exact TOP BMW alignment software

  • Extensive international vehicle database

  • Ergonomic workstation with additional USB ports

  • Operating status indicator lights

  • Provision for an additional monitor or A4 printer

  • Prepared for trolley installation

  • User-friendly interface for a faster, more controlled workflow

Part Number:

The SICE KDS 3D TOP is an advanced BMW-approved 3D wheel alignment system engineered to deliver exceptional accuracy, consistency and efficiency when servicing modern vehicles.

Four high-resolution HI-Q cameras accurately capture the vehicle’s geometric parameters, while advanced image-processing technology provides reliable and repeatable measurements—even in challenging lighting conditions. High-resolution targets with integrated anti-reflective filters help minimise optical interference and support precise results.

An integrated motorised lifting system automatically tracks the targets as the vehicle lift moves, keeping the measuring beam at the correct height without manual adjustment. This creates a faster, smoother alignment process and helps improve workshop productivity.

Dedicated Exact TOP BMW software guides the operator through each stage using a clear, intuitive interface. Updated calculation algorithms and an extensive international vehicle database support accurate alignment across a wide range of vehicles.

Key features include:

  • Officially approved according to BMW standards

  • Four high-resolution HI-Q digital cameras

  • Automatic target-tracking system

  • High-resolution targets with anti-reflective filters

  • Reliable measurements under challenging lighting conditions

  • Continuous chassis-height measurement using dedicated mini targets

  • Maximum steering-angle measurement

  • Wireless electronic steering-wheel inclinometer

  • Dedicated Exact TOP BMW alignment software

  • Extensive international vehicle database

  • Ergonomic workstation with additional USB ports

  • Operating status indicator lights

  • Provision for an additional monitor or A4 printer

  • Prepared for trolley installation

  • User-friendly interface for a faster, more controlled workflow

Part Number:

Technical Specifications
Wheel Sizes10" to 20"
Power Supply115-230 Vac / 50 -60 Hz 1pH
Absorbed Power500 W
Total Toe± 20°
Semi-Toe± 10°
Camber± 10°
Caster± 30°
Kingpin± 30°
Part Number

Product Details

  • This tyre changer machine comes with a 3 year parts and labour warranty which is subject to proof of maintenance.

    Warranty exclusions :
    Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.

  • The new TRIGON Super Novo 3D Mondolfo Ferro wheel aligner with 2-camera reading system is fast, accurate and reliable. The software is intuitive and user-friendly for fast and accurate wheel alignment measurements.

    The wheel aligner is compatible with the new universal PROADAS.

    •  Display of values up to 0.01°

    •  Sensor holder from 10” to 22”, 26” with adapter.

    • Measurement “in difference” to eliminate measurement problems in critical sunlight conditions or in the presence of light reflections.

    • Intuitive two-key operation

    • User-friendly software with easily accessible tutorial

    • PC with multilingual Windows 10 IoT operating system

    • Easy access to all setting values

    • Steering automatic measurements directly from the targets

    • Chassis measurement data

    • Factory-calibrated, calibration checked only upon installation, no periodic calibrations required

    • User database for entering or changing vehicle data

    • Customer database, for specific activities, to recall and save all customer data.

    • Assistance system to drive the vehicle on the lift by means of a remote camera (optional)

    • Convenient side trolley for clamp and sensor holder (optional)

    • Mobile camera to work from the ground level up to a height of 2 meters (optional)

    • No optional extras with this product
