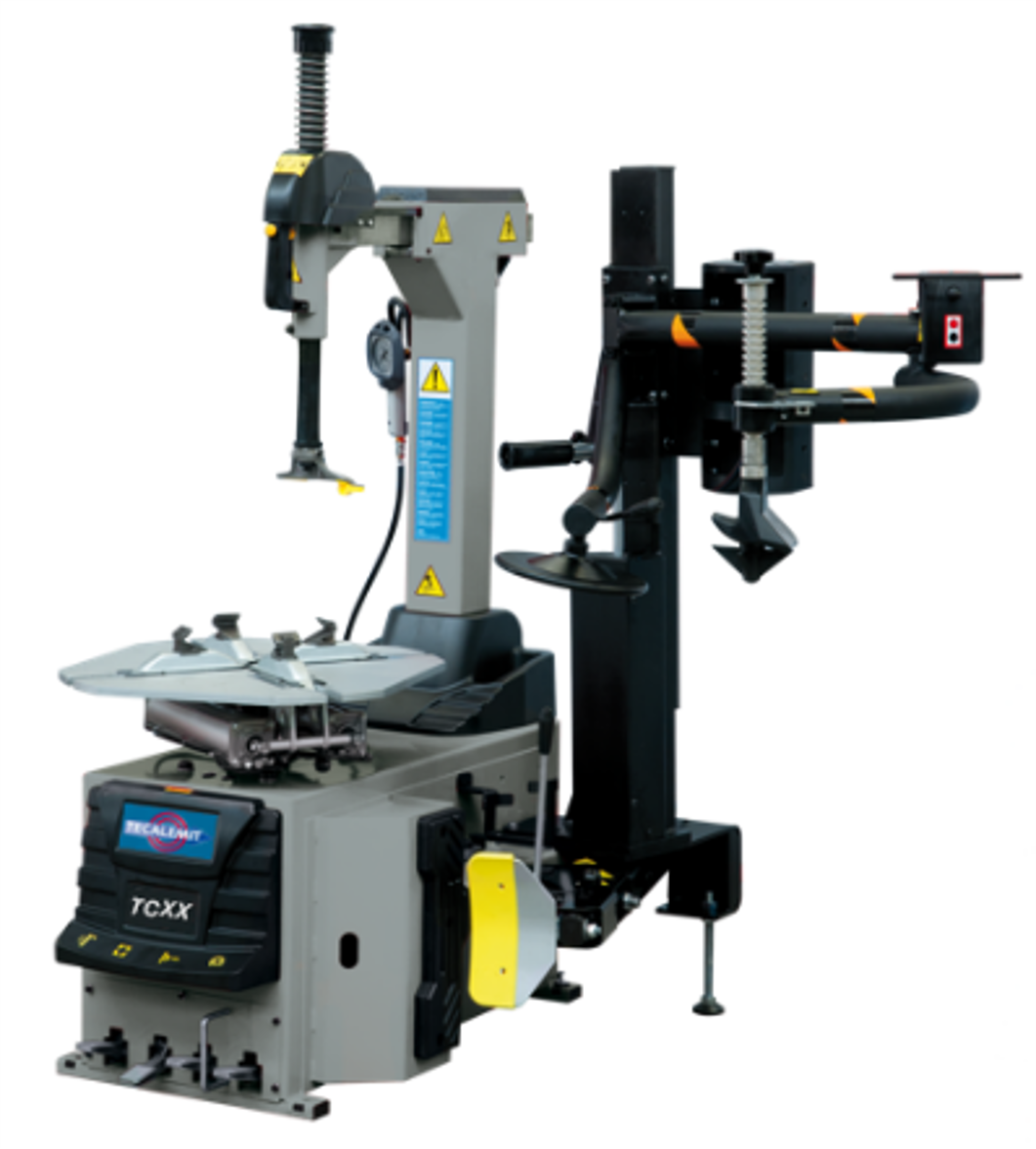

Tecalemit 24" Tyre Changer With Assist Arm (Copy)
The TTC/700 is an automatic tyre changer for cars and LGVs with rims up to 24”. It is a tilt-back tyre changer coupled with a pneumatic bead breaker and side-mounted assist arms.
FEATURES
24” External clamping capacity (24” internal), Tilt-back single pivot vertical post, Double action bead breaker with enlarged wheel pad, Single-speed 7 rpm turntable. Inflation gauge. Side-mounted assist arms
The TTC/700 is an automatic tyre changer for cars and LGVs with rims up to 24”. It is a tilt-back tyre changer coupled with a pneumatic bead breaker and side-mounted assist arms.
FEATURES
24” External clamping capacity (24” internal), Tilt-back single pivot vertical post, Double action bead breaker with enlarged wheel pad, Single-speed 7 rpm turntable. Inflation gauge. Side-mounted assist arms
The TTC/700 is an automatic tyre changer for cars and LGVs with rims up to 24”. It is a tilt-back tyre changer coupled with a pneumatic bead breaker and side-mounted assist arms.
FEATURES
24” External clamping capacity (24” internal), Tilt-back single pivot vertical post, Double action bead breaker with enlarged wheel pad, Single-speed 7 rpm turntable. Inflation gauge. Side-mounted assist arms
| Technical Specifications | ||
|---|---|---|
| Power Requirements | 1ph | |
| Rim Diameter | 11" - 24" | |
| Inside Diameter | 13" - 26" | |
| Rim Width | Max 14" | |
| Maximum Wheel Diameter | 1100mm | |
| RPM | 7RPM | |
| Operating Pressure | 8 - 10 BAR | |
| Air Required | Yes | |
| Bead Breaker Force | 15000N | |
| Power Supply | N/A | |
| Size Of Demount Shaft | N/A | |
| Size Of Slider Arm | N/A | |
| Part Number | TTC725 + TTCAA |
Product Details
-
This tyre changer comes with a 2 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Consumable items including all plastic protection devices for the turntable, demount head and the bead breaker.
We offer a wide range of service contracts for this tyre changer, please contact 0345 872 2400 for more information. -
The TTC/700 is a 24” tyre changer that incorporates many patented features, making it a high-performance tabletop tyre changer. The side-mounted assist arms are a patented bead lifting/pressing device to assist the operator, particularly on problematic low-profile or run-flat tyres. Specifically designed for the TTC/725 range of equipment, these assist arms are a three-stage system. A lower bead dish allows the lower bead to be lifted pneumatically and safely when the bead becomes stuck on the rim edge; this system eliminates the need for the technician to use the tyre lever to release a stuck bead, which can be unsafe. The upper bead roller allows for the correct placement of the bead whilst the 3rd arm press moves around with the tyre, allowing the technician to have a hands-off approach. There are several different parts to the assist arms to help with the following:
A helical device applied to the rotating arm is fitted with a pad, which allows the operator to push the tyre’s bead into the wheel well without stressing the bead.
Pneumatic wheel press cone for centring alloy wheel on the table.
The top roller assists in bead lubrication.
Rotating arm eases pressure on the bead during fitting.
Lower disc tyre bead removal.
