Tecalemit 3 Tonne Two Post Lift With Baseframe

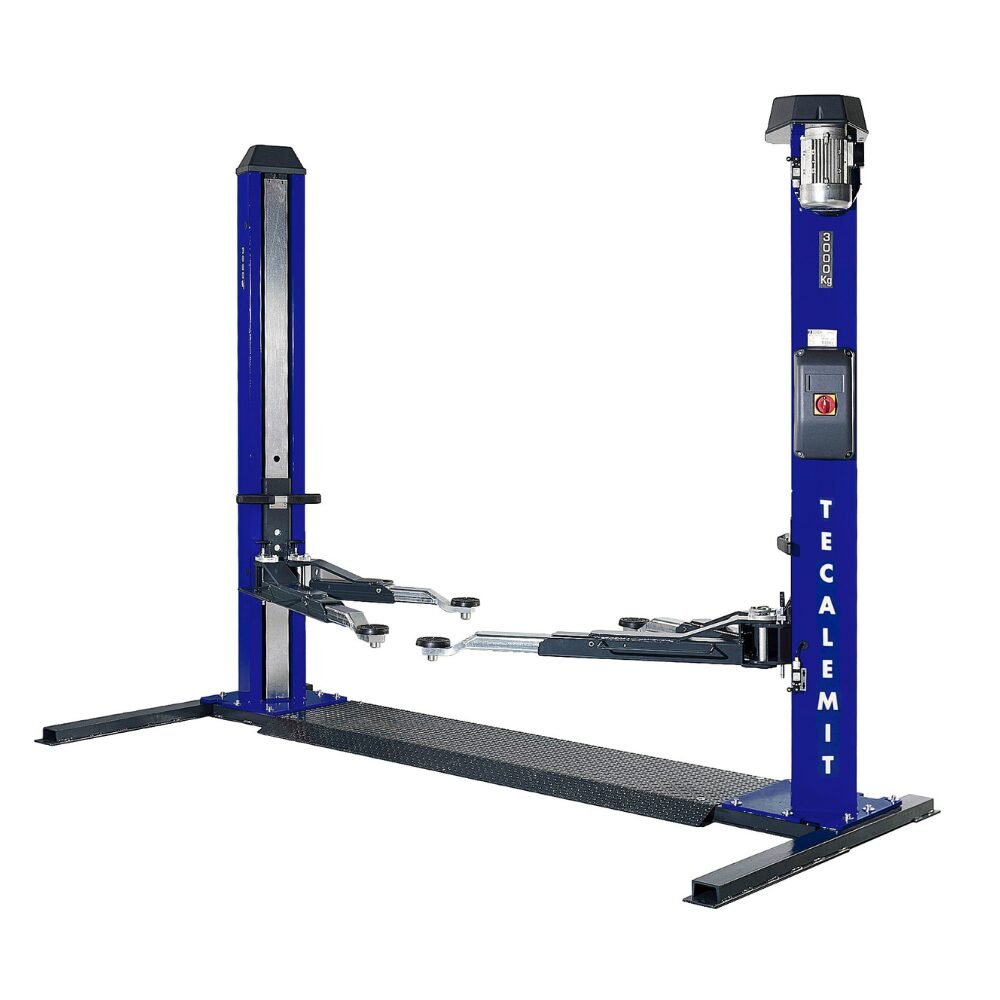

Tecalemit 3 Tonne Two Post Lift with Baseframe (Narrow Bay Lift)
Made in Italy the SF7303 is the perfect solution for narrow bays and features a tried and tested design with a solid H-frame for additional support. This lift has been designed to improve efficiency and productivity, allowing you to work quickly and accurately, featuring a generous working space that will enable you to access even the hardest-to-reach areas of the vehicle, as well as an extremely low minimum height of 50mm. With the SF7303.
You can be sure of a dependable performance, year after year.
Tecalemit 3 Tonne Two Post Lift with Baseframe (Narrow Bay Lift)
Made in Italy the SF7303 is the perfect solution for narrow bays and features a tried and tested design with a solid H-frame for additional support. This lift has been designed to improve efficiency and productivity, allowing you to work quickly and accurately, featuring a generous working space that will enable you to access even the hardest-to-reach areas of the vehicle, as well as an extremely low minimum height of 50mm. With the SF7303.
You can be sure of a dependable performance, year after year.
Tecalemit 3 Tonne Two Post Lift with Baseframe (Narrow Bay Lift)
Made in Italy the SF7303 is the perfect solution for narrow bays and features a tried and tested design with a solid H-frame for additional support. This lift has been designed to improve efficiency and productivity, allowing you to work quickly and accurately, featuring a generous working space that will enable you to access even the hardest-to-reach areas of the vehicle, as well as an extremely low minimum height of 50mm. With the SF7303.
You can be sure of a dependable performance, year after year.
| Technical Specifications | ||
|---|---|---|
| Lifting Capacity | 3 Tonne | |
| Operation | Mechanical | |
| Power Requirements | 3 Phase | |
| Isolator Required | No | |
| Motor size | 3.6kW | |
| Platform Length | N/A | |
| Minimum Height | 50mm | |
| Maximum Height | 1945mm | |
| Front Arm Length | Min 515mm / Max 845mm | |
| Rear Arm Length | Min 760mm / Max 1200mm | |
| Drive Through Width | 2560mm | |
| Lifting/Lowering Time | N/A | |
| Part Number | SF7303 |
Product Details
-
This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Proof of maintenance will be required in the event of a warranty claim.
We offer a wide range of service contracts for this lift, please contact 0844 249 8102 for more information.
To download the HSE document for thorough examinations and testing of lifts follow the link below.
-
No additional information for this product.
-
150mm Pad Adaptor (set of 4) for SF7303 - 8-43100153
