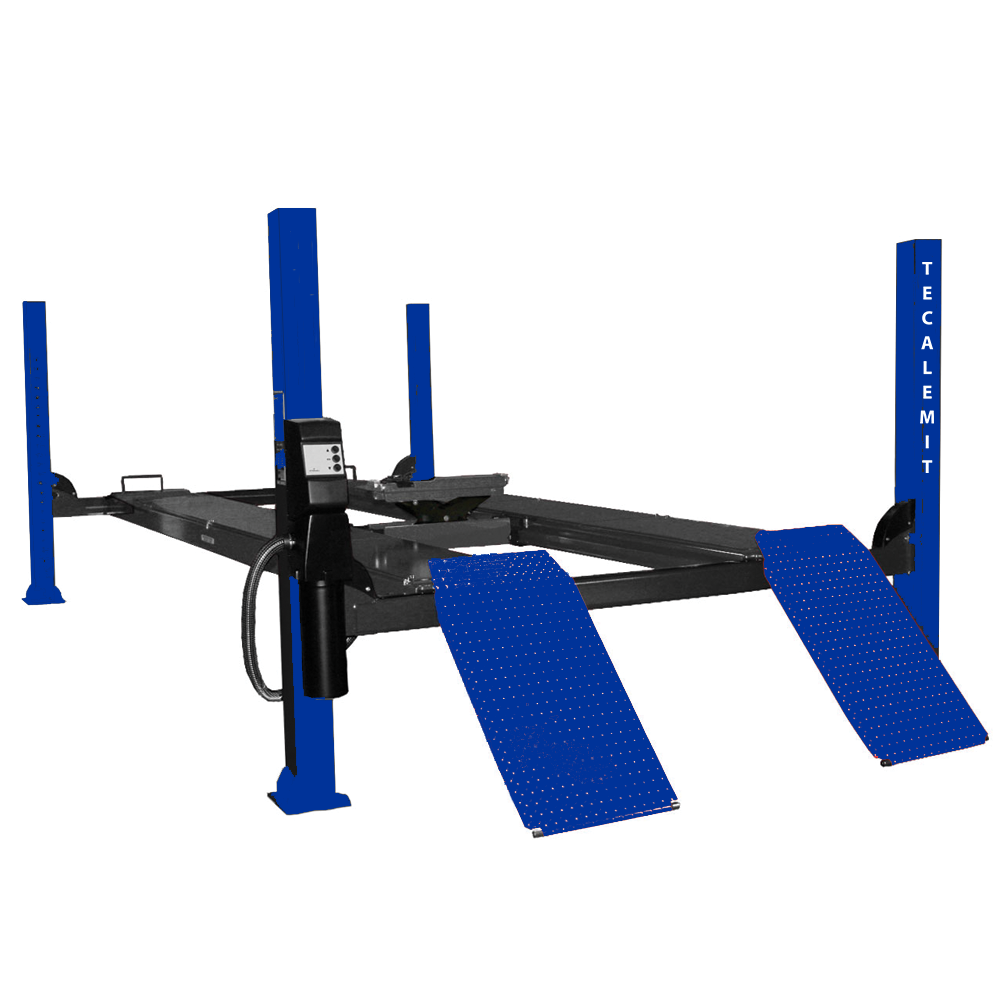

Tecalemit SF7023 4 Post Lift 4 Tonne ATL Lift 4300mm Platforms
Tecalemit SF7003 4 Post Lift 4 Tonne 4 Post ATL Lift 4300mm Platforms STANDARD WIDTH Class IV
The SF7003 is a high-quality four-post lift designed to meet the requirements of DVSA-approved MOT and ATL testing. With a lifting capacity of up to 4 tonnes, it ensures reliable performance for a wide range of vehicles. The lift features a stroke length of 1,670 mm and a working height of 1,810 mm, providing ample space for thorough inspections. Its electro-hydraulic operation, powered by a 3.0 kW pump unit, offers efficient lifting and lowering times of 24/26 seconds.
Designed for both surface-mounted and recessed installations, the SF7003 is a versatile and dependable choice for workshops.
Tecalemit SF7003 4 Post Lift 4 Tonne 4 Post ATL Lift 4300mm Platforms STANDARD WIDTH Class IV
The SF7003 is a high-quality four-post lift designed to meet the requirements of DVSA-approved MOT and ATL testing. With a lifting capacity of up to 4 tonnes, it ensures reliable performance for a wide range of vehicles. The lift features a stroke length of 1,670 mm and a working height of 1,810 mm, providing ample space for thorough inspections. Its electro-hydraulic operation, powered by a 3.0 kW pump unit, offers efficient lifting and lowering times of 24/26 seconds.
Designed for both surface-mounted and recessed installations, the SF7003 is a versatile and dependable choice for workshops.
Tecalemit SF7003 4 Post Lift 4 Tonne 4 Post ATL Lift 4300mm Platforms STANDARD WIDTH Class IV
The SF7003 is a high-quality four-post lift designed to meet the requirements of DVSA-approved MOT and ATL testing. With a lifting capacity of up to 4 tonnes, it ensures reliable performance for a wide range of vehicles. The lift features a stroke length of 1,670 mm and a working height of 1,810 mm, providing ample space for thorough inspections. Its electro-hydraulic operation, powered by a 3.0 kW pump unit, offers efficient lifting and lowering times of 24/26 seconds.
Designed for both surface-mounted and recessed installations, the SF7003 is a versatile and dependable choice for workshops.
| Technical Specifications | ||
|---|---|---|
| Lifting Capacity | 4 Tonne | |
| Operation | Hydraulic | |
| Power Requirements | 3 Phase | |
| Isolator Required | N/A | |
| Motor size | 3kW | |
| Platform Length | 4260mm | |
| Platform Width | N/A | |
| Minimum Height | 140mm | |
| Maximum Height | 1810mm | |
| Front Arm Length | n/a | |
| Rear Arm Length | n/a | |
| Drive Through Width | 2350mm | |
| Lifting/Lowering Time | 24/26 seconds | |
| Part Number | SF7023 |
Product Details
-
This lift comes with no warranty
-
No additional information for this product
-
No additional extras for this product.
