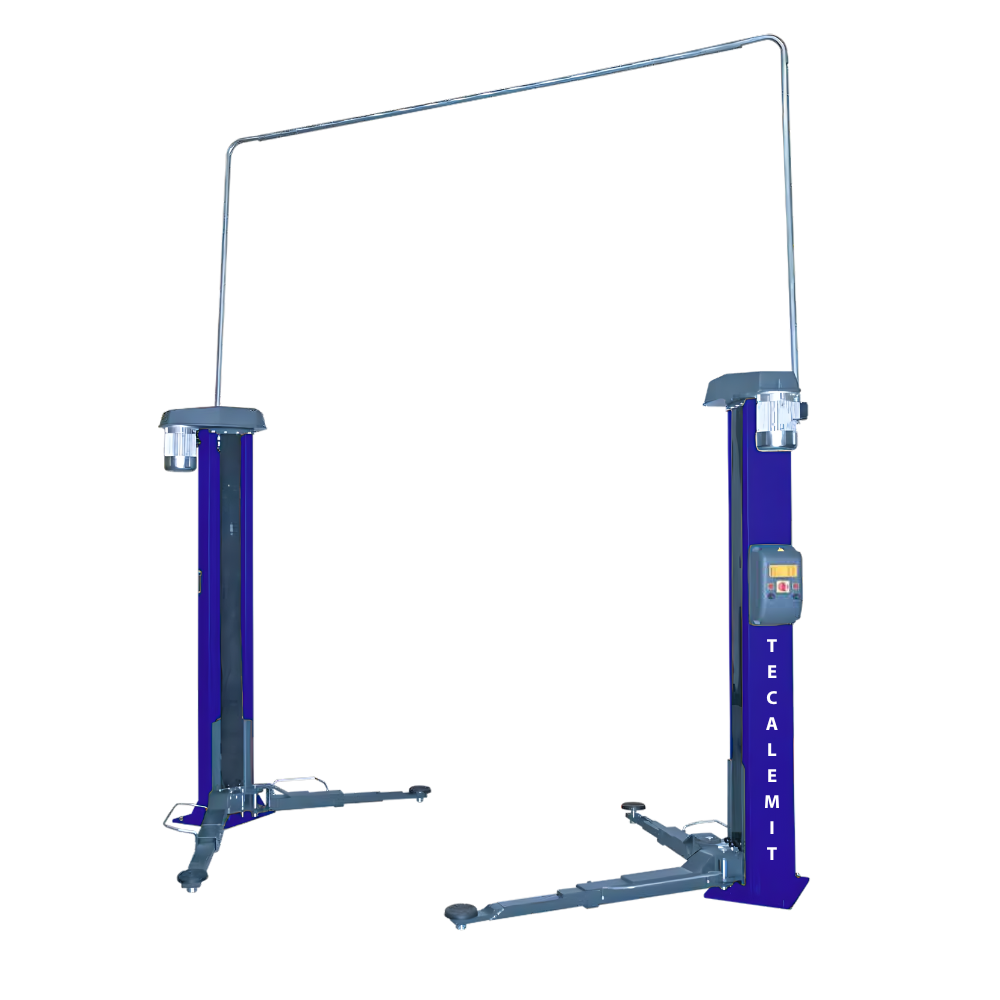

Tecalemit SF7313 4 Tonne Two Post Lift Baseless With Overhead Portal

£0.00

The SF7313 is a highly adaptable 4-tonne, 2-post lift designed for a wide range of vehicles—from compact cars to large vans (excluding LWB). Its baseless design provides a clear, unobstructed floor beneath the vehicle, while the low 70 mm minimum height makes it ideal for low-profile sports cars.

Each column is powered by its own motor, and the lift features extra-long, four-stage telescopic arms with adjustable pads. These smooth-operating arms support extensions for various commercial vehicles.

Maintenance is reduced thanks to the automatic screw and nut lubrication system. Safety features include an automatic device that detects excessive wear on the load-bearing nut screw and an arm swing locking system that can be manually disengaged.

The lift’s columns are also fitted with uniquely shaped buffers to help prevent vehicle door damage.

Part Number: SF7313

The SF7313 is a highly adaptable 4-tonne, 2-post lift designed for a wide range of vehicles—from compact cars to large vans (excluding LWB). Its baseless design provides a clear, unobstructed floor beneath the vehicle, while the low 70 mm minimum height makes it ideal for low-profile sports cars.

Each column is powered by its own motor, and the lift features extra-long, four-stage telescopic arms with adjustable pads. These smooth-operating arms support extensions for various commercial vehicles.

Maintenance is reduced thanks to the automatic screw and nut lubrication system. Safety features include an automatic device that detects excessive wear on the load-bearing nut screw and an arm swing locking system that can be manually disengaged.

The lift’s columns are also fitted with uniquely shaped buffers to help prevent vehicle door damage.

Part Number: SF7313

Technical Specifications
Lifting Capacity4 Tonne
OperationMechanical
Power Requirements3 Phase
Isolator RequiredNo
Motor size2 x 3.5kW
Platform LengthN/A
Minimum Height70mm
Maximum Height1890mm
Front Arm LengthMin 695mm / Max 1732mm
Rear Arm LengthN/A
Drive Through Width2700mm
Lifting/Lowering Time55 Seconds
Part NumberSF7313

Product Details

  • This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.

    Warranty exclusions :

    Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.

    Proof of maintenance will be required in the event of a warranty claim.

    We offer a wide range of service contracts for this lift, please contact 0844 249 8102 for more information.

    To download the HSE document for thorough examinations and testing of lifts follow the link below.

    • No additional information for this product.

    • 80mm Pad Adaptor (set of 4) for SF7313/SF7323 - 8-43300014

    • 140mm Pad Adaptor (set of 4) for SF7313/SF7323 - 8-43300015
