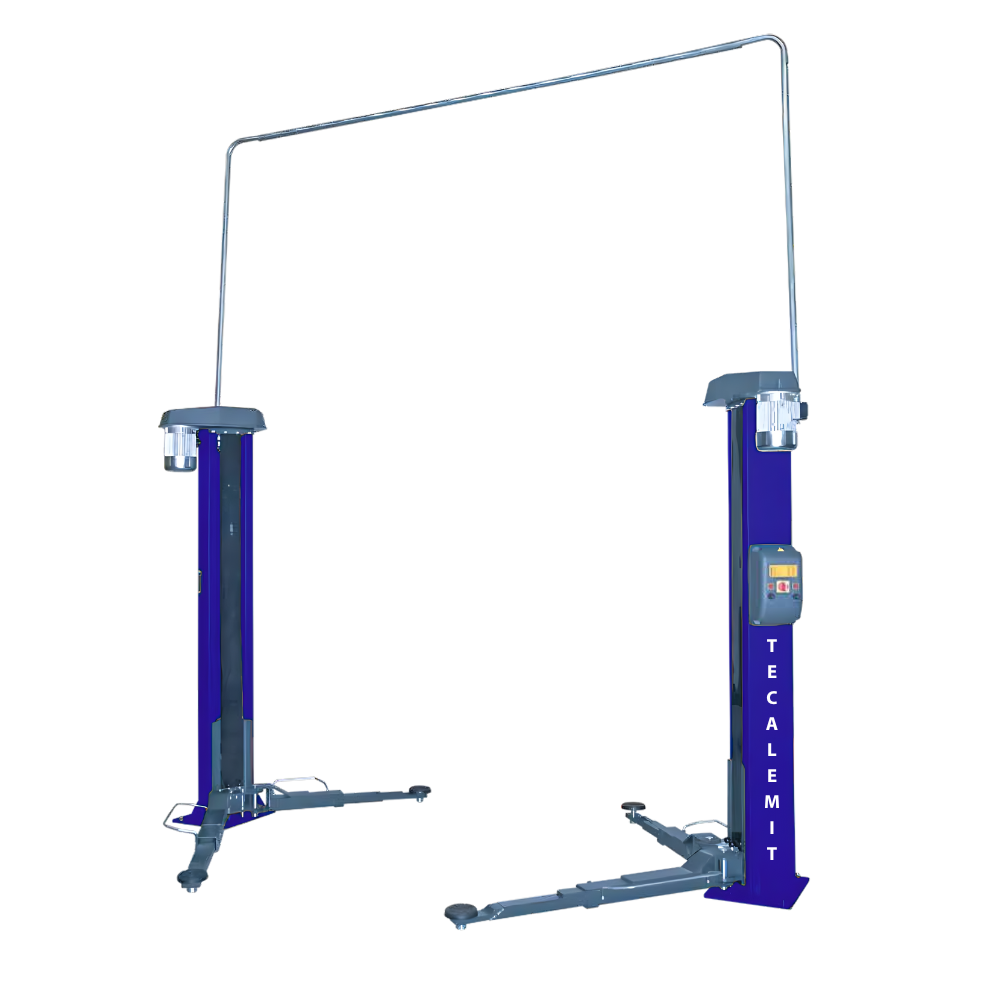

Tecalemit 5 Tonne Two Post Lift Baseless With Overhead Portal
The SF7323 is a highly versatile 2-post lift with an impressive 5-tonne lifting capacity, specifically designed for vans.
It features two powerful motors - one for each column - and is equipped with four long, three-stage telescopic arms with adjustable pads. These smooth-operating arms extend easily and support extensions for a variety of commercial vehicles.
Maintenance is minimised thanks to the automatic continuous screw and nut lubrication system. The lift also includes an automatic safety device that activates if there is excessive wear on the load-bearing nut screw, as well as an arm swing locking system that can be easily disengaged by the operator.
To help prevent door damage, the lift’s columns are fitted with uniquely shaped buffers.
The SF7323 is a highly versatile 2-post lift with an impressive 5-tonne lifting capacity, specifically designed for vans.
It features two powerful motors - one for each column - and is equipped with four long, three-stage telescopic arms with adjustable pads. These smooth-operating arms extend easily and support extensions for a variety of commercial vehicles.
Maintenance is minimised thanks to the automatic continuous screw and nut lubrication system. The lift also includes an automatic safety device that activates if there is excessive wear on the load-bearing nut screw, as well as an arm swing locking system that can be easily disengaged by the operator.
To help prevent door damage, the lift’s columns are fitted with uniquely shaped buffers.
The SF7323 is a highly versatile 2-post lift with an impressive 5-tonne lifting capacity, specifically designed for vans.
It features two powerful motors - one for each column - and is equipped with four long, three-stage telescopic arms with adjustable pads. These smooth-operating arms extend easily and support extensions for a variety of commercial vehicles.
Maintenance is minimised thanks to the automatic continuous screw and nut lubrication system. The lift also includes an automatic safety device that activates if there is excessive wear on the load-bearing nut screw, as well as an arm swing locking system that can be easily disengaged by the operator.
To help prevent door damage, the lift’s columns are fitted with uniquely shaped buffers.
| Technical Specifications | ||
|---|---|---|
| Lifting Capacity | 5 Tonne | |
| Operation | Mechanical | |
| Power Requirements | 3 Phase | |
| Isolator Required | No | |
| Motor size | 2 x 3.5kW | |
| Platform Length | N/A | |
| Minimum Height | 105mm | |
| Maximum Height | 2005mm | |
| Front Arm Length | Min 790mm / Max 1520mm | |
| Rear Arm Length | N/A | |
| Drive Through Width | 2800mm | |
| Lifting/Lowering Time | 55 Seconds | |
| Part Number | SF7323 |
Product Details
-
This lift comes with a 2 year parts and labour warranty which is subject to proof of maintenance.
Warranty exclusions :
Accidental damage, vandalism (non-fair wear and tear), acts of nature and unauthorised repairs by non-Gemco service agents. Package prices are for U.K. Mainland only.
Proof of maintenance will be required in the event of a warranty claim.
We offer a wide range of service contracts for this lift, please contact 0844 249 8102 for more information.
To download the HSE document for thorough examinations and testing of lifts follow the link below.
-
No additional information for this product.
-
80mm Pad Adaptor (set of 4) for SF7313/SF7323 - 8-43300014
140mm Pad Adaptor (set of 4) for SF7313/SF7323 - 8-43300015
