Tecalemit Class 7 ATL MTS Roller Brake Tester
Tecalemit Class 7 ATL MTS Roller Brake Tester with PC, Trolley - Prefabricated Installation Frame included
The DE/9719 brake tester range has been developed to meet the latest UK regulatory requirements for connected MOT testing. Operated via an infrared remote control, it is simple to use and highly accurate. It can be supplied in a range of configurations to meet specific user requirements.

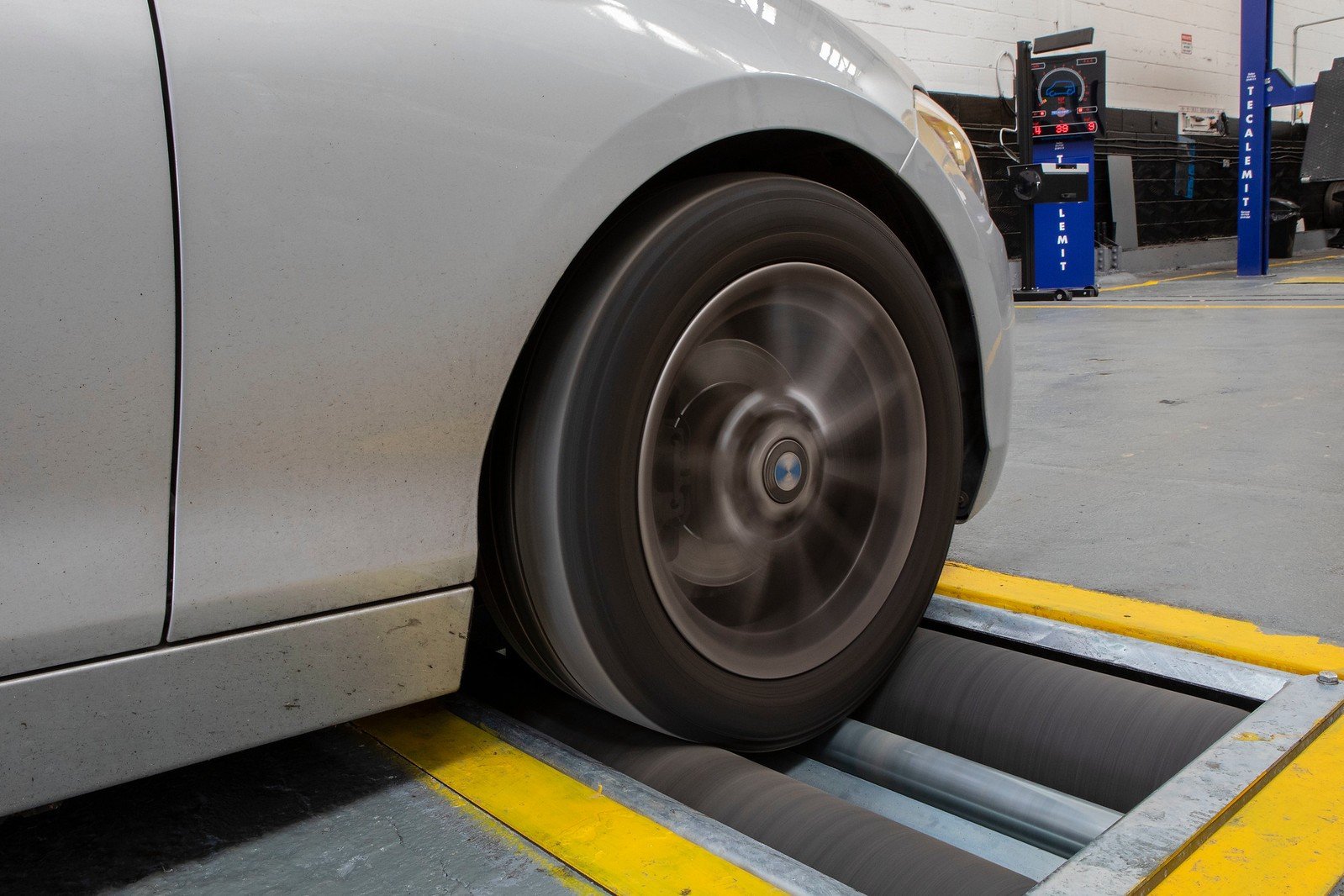

The fully galvanised roller bed sits flush in the workshop floor and is supplied with roller covers for safety and protection when not in use. DE/9719 can be used for testing 3, 4, 5L & 7 Classes, covering cars and light commercial vehicles.
The brake tester is fully PC controlled and can be easily upgraded to include Tecalemit’s Emissions Testing System. The DE/9719 is fully approved for MOT (2-person) or Automated Test Lane (ATL) use. The brake tester can be used with 4X4 vehicles, subject to the manufacturer’s specification, extending the range of cars and vans that can be tested.
Tecalemit Class 7 ATL MTS Roller Brake Tester with PC, Trolley - Prefabricated Installation Frame included
The DE/9719 brake tester range has been developed to meet the latest UK regulatory requirements for connected MOT testing. Operated via an infrared remote control, it is simple to use and highly accurate. It can be supplied in a range of configurations to meet specific user requirements.
The fully galvanised roller bed sits flush in the workshop floor and is supplied with roller covers for safety and protection when not in use. DE/9719 can be used for testing 3, 4, 5L & 7 Classes, covering cars and light commercial vehicles.
The brake tester is fully PC controlled and can be easily upgraded to include Tecalemit’s Emissions Testing System. The DE/9719 is fully approved for MOT (2-person) or Automated Test Lane (ATL) use. The brake tester can be used with 4X4 vehicles, subject to the manufacturer’s specification, extending the range of cars and vans that can be tested.
Tecalemit Class 7 ATL MTS Roller Brake Tester with PC, Trolley - Prefabricated Installation Frame included
The DE/9719 brake tester range has been developed to meet the latest UK regulatory requirements for connected MOT testing. Operated via an infrared remote control, it is simple to use and highly accurate. It can be supplied in a range of configurations to meet specific user requirements.
The fully galvanised roller bed sits flush in the workshop floor and is supplied with roller covers for safety and protection when not in use. DE/9719 can be used for testing 3, 4, 5L & 7 Classes, covering cars and light commercial vehicles.
The brake tester is fully PC controlled and can be easily upgraded to include Tecalemit’s Emissions Testing System. The DE/9719 is fully approved for MOT (2-person) or Automated Test Lane (ATL) use. The brake tester can be used with 4X4 vehicles, subject to the manufacturer’s specification, extending the range of cars and vans that can be tested.
| Technical Specifications | ||
|---|---|---|
| Overall Sze Of Unit (LxWxH) | 2810mm x 710mm x 330mm | |
| Diameter Of Rollers | 206mm | |
| Standard Length Of Rollers | 900mm | |
| Power Requirements | 3ph | |
| Maximum Axle Test Weight | 4000kg | |
| Gear Motor Size | 4kw x2 | |
| Test Speed | 2.9km/h | |
| Maximum Brake Force Measurement | 800kgf | |
| Part Number | DE9719ATL |
Product Details
-
This brake tester comes with no warranty.
-
OA62458 - Wall mounted high-intensity LED Display with standard bracket for Class 4 or Class 7
77000146 - Pivot wall mounted bracker for high-intensity LED Display
OA600282RAL5002 - Pedestal for pivot wall mounted bracket
